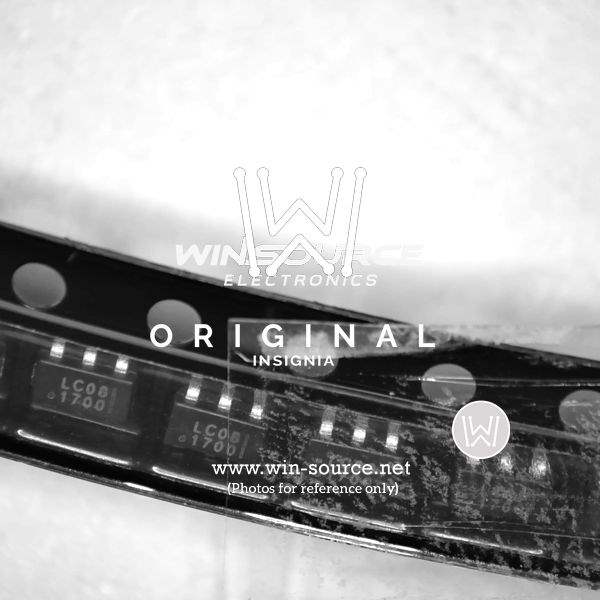

The MCP1700T-2502E/MB from Microchip Technology is a highly efficient, CMOS low-dropout voltage regulator that offers excellent stability and low quiescent current. This device is designed to deliver up to 250 mA of current while consuming only 1.6 µA of quiescent current, making it an ideal solution for battery-operated devices where extended battery life is crucial.

Key Features

• Output Voltage: This regulator provides a fixed output voltage of 2.5V, which is suitable for various low-power applications.
• High Output Current: With an ability to supply up to 250 mA, the MCP1700T-2502E/MB can power a wide range of components.
• Low Dropout Voltage: The low dropout voltage of just 178 mV at 250 mA allows for efficient use of the battery voltage and reduces power loss.
• Low Quiescent Current: The extremely low quiescent current of 1.6 µA minimizes power consumption when the device is in idle mode.
• Stable with Ceramic Output Capacitors: This regulator is stable with ceramic output capacitors that have low equivalent series resistance (ESR), which are smaller, more reliable, and less expensive than tantalum capacitors.
• Short-Circuit Protection: The built-in current limit and over-temperature protection ensure the device's safety and reliability under extreme conditions.
• Package: It comes in a 3-Pin SOT-23 package, which is suitable for space-constrained applications.

Applications

The MCP1700T-2502E/MB is versatile and can be used in a variety of applications, including:

• Battery-powered devices
• Portable electronics
• Microcontroller power supply
• Wireless communication devices
• Analog and digital sensor systems

In summary, the MCP1700T-2502E/MB voltage regulator from Microchip Technology offers a perfect blend of low power consumption, high current capability, and stable operation with ceramic capacitors, making it an excellent choice for designers looking to optimize power management in their projects.
