Microchip Technology's MCP41HV51-103E/MQ Digital Potentiometer

The MCP41HV51-103E/MQ is a high-precision digital potentiometer designed by Microchip Technology, a leader in microcontroller and analog semiconductors. This digital potentiometer, also known as a digipot, provides a reliable and flexible solution for applications requiring variable resistance settings. It is particularly well-suited for calibration and adjustable part of analog circuits, effectively replacing mechanical potentiometers and trim pots with a digital alternative that can be controlled via a microcontroller.

Key Features

• High-Voltage Operation: The MCP41HV51-103E/MQ is capable of operating with a voltage supply up to 36V, or ±18V dual supply, making it suitable for high-voltage applications.
• Resolution: It offers a 7-bit (128 wiper steps) resolution, providing fine granularity for resistance adjustments.
• Non-volatile Memory: Equipped with non-volatile memory, the device can retain the wiper position after power-off, ensuring consistent performance across power cycles.
• Interface: The device communicates through a SPI interface, allowing for easy integration with most microcontrollers.
• Temperature Range: It operates over an extended temperature range from -40°C to +125°C, suitable for various industrial environments.

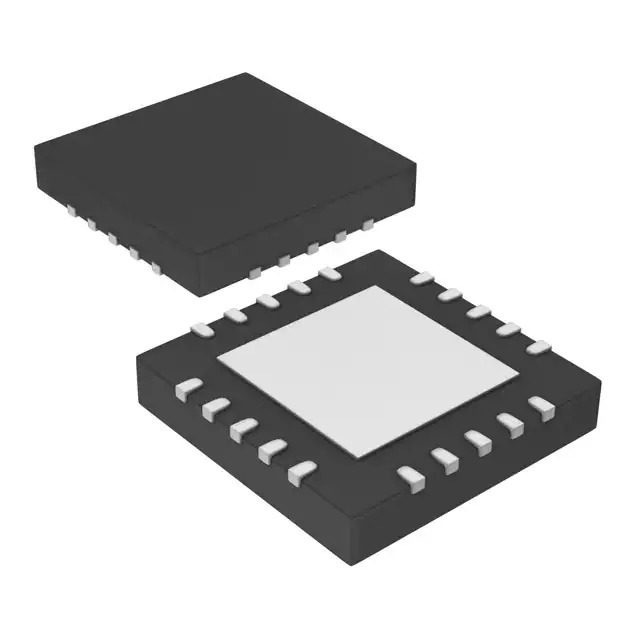

• Package: The MCP41HV51-103E/MQ is available in a 20-lead QFN package, providing a compact footprint for space-constrained applications.

Applications

The versatility of the MCP41HV51-103E/MQ makes it ideal for a broad range of applications, including:

• Automated product calibration
• Programmable filters and delays
• Adjustable power supplies and voltage references
• LED lighting control
• Audio equipment and volume control

Overall, the MCP41HV51-103E/MQ digital potentiometer from Microchip Technology is a robust and precise component that offers designers a digital solution to achieve analog control. Its high-voltage capability, non-volatile memory, and SPI interface make it an excellent choice for modern electronic systems requiring reliable and precise variable resistance settings.
