Overview of MCP6021T-E/OT from Microchip Technology

The MCP6021T-E/OT is a high-precision operational amplifier (op-amp) designed by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This particular model is part of the MCP602x family, which is known for its low power consumption and general-purpose application suitability.

Key Features

• Single-Supply Operation: The MCP6021T-E/OT operates from a single power supply voltage, ranging from 2.5V to 5.5V, making it incredibly versatile for various electronic circuits and battery-operated devices.
• Low Quiescent Current: With a typical quiescent current of just 230 µA, it is an excellent choice for power-sensitive applications.
• Extended Temperature Range: This device is designed to perform reliably in a wide temperature range, from -40°C to +125°C, which is suitable for industrial and automotive applications.
• High Gain Bandwidth Product: The MCP6021T-E/OT features a 10 MHz gain bandwidth product which provides a good balance between speed and power consumption.
• Rail-to-Rail Output: The op-amp provides a rail-to-rail output swing, which maximizes the dynamic range in low-voltage applications.
• Excellent DC Performance: The device offers low offset voltage and drift, ensuring high accuracy in precision analog circuits.

Applications

The MCP6021T-E/OT is suitable for a wide range of applications, including:

• Analog filters
• Data acquisition systems
• Portable instrumentation
• Power supply control
• Medical devices
• Automotive sensors and electronics

Packaging and Quality

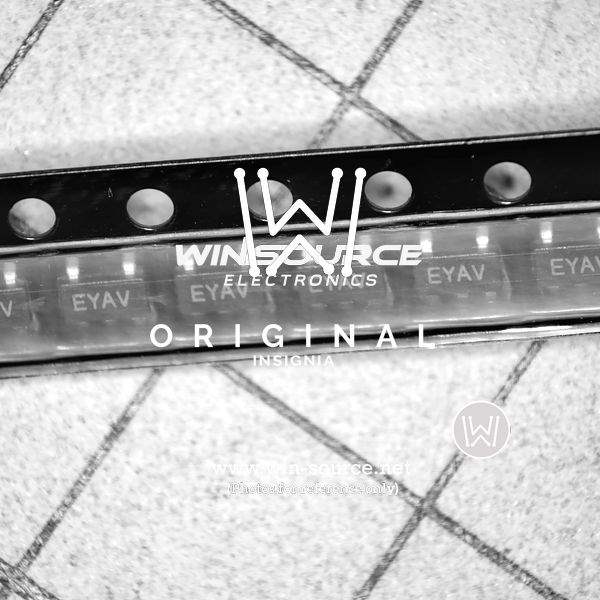

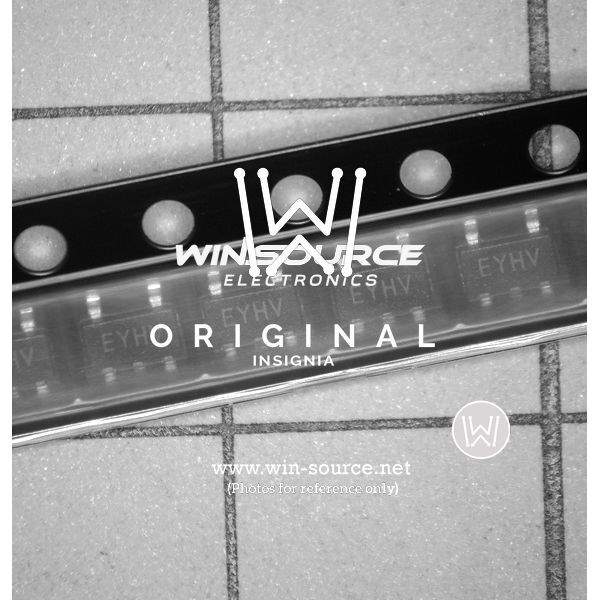

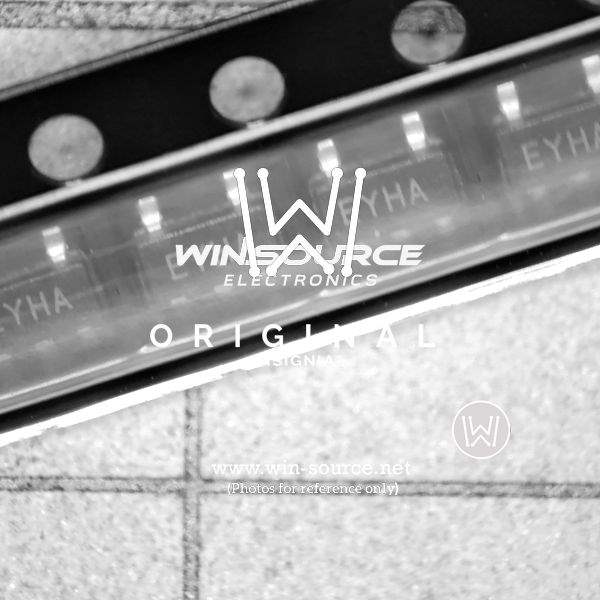

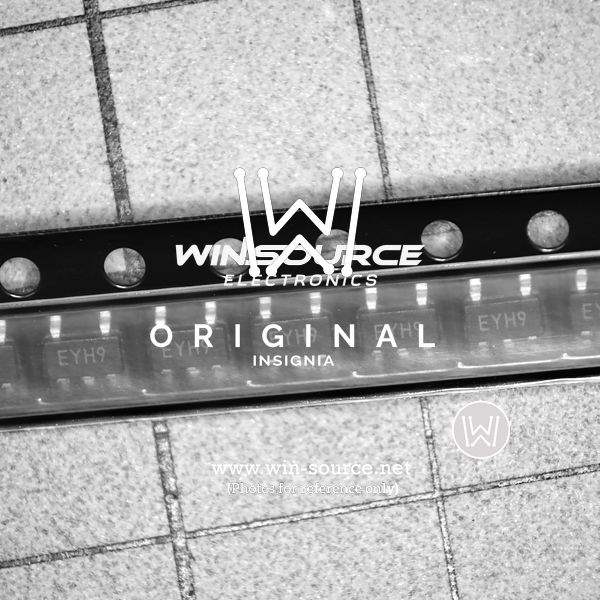

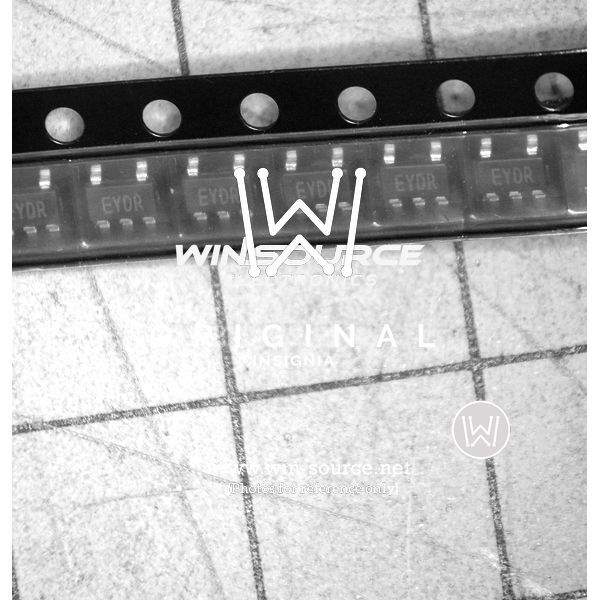

The op-amp is offered in a 5-pin SOT-23 package, which is ideal for space-constrained applications. The small footprint of the package allows for high-density mounting on PCBs, thereby reducing the overall size of the electronic device. Microchip Technology's commitment to quality ensures that the MCP6021T-E/OT meets stringent industry standards for performance and reliability.

In summary, the MCP6021T-E/OT from Microchip Technology is a high-performance, low-power operational amplifier that is well-suited for a multitude of electronic applications requiring precision and efficiency.
