Microchip Technology MCP7940N-I/SN Real-Time Clock/Calendar

The MCP7940N-I/SN is a highly integrated Real-Time Clock/Calendar (RTCC) from Microchip Technology, designed for the effective management of time and date operations in embedded systems. This compact, serial-interface timekeeping device operates over a standard I2C bus, making it a perfect fit for applications that require accurate timekeeping, low power consumption, and minimal space usage.

Featuring a battery switchover circuit for backup power supply, the MCP7940N-I/SN ensures that timekeeping operations continue seamlessly in the event of a primary power failure. This makes it an ideal choice for systems that cannot afford to lose time information, such as data loggers, smart meters, and other time-sensitive applications.

The device comes with 64 bytes of battery-backed SRAM and a unique MAC address storage area, providing a convenient solution for networked devices. Its digital trimming feature allows for time calibration, ensuring higher accuracy which can be critical in precision-based applications.

The MCP7940N-I/SN supports a wide range of features including:

• Automatic leap year compensation up to the year 2399
• Programmable clock output for peripheral devices
• Multiple alarms with hardware interrupt pins
• Power-fail timestamp to log the time when power is lost
• Operating voltage range from 1.8V to 5.5V
• Low current consumption

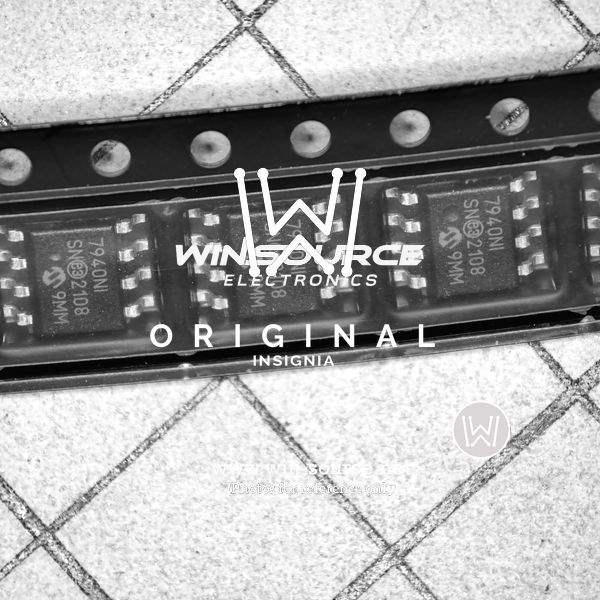

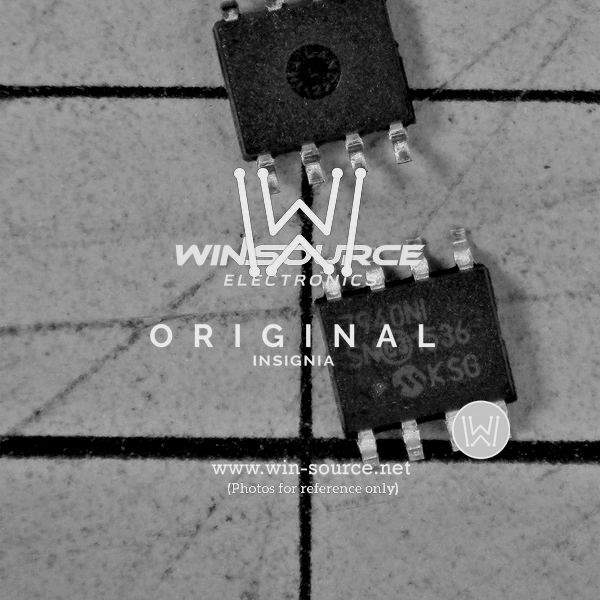

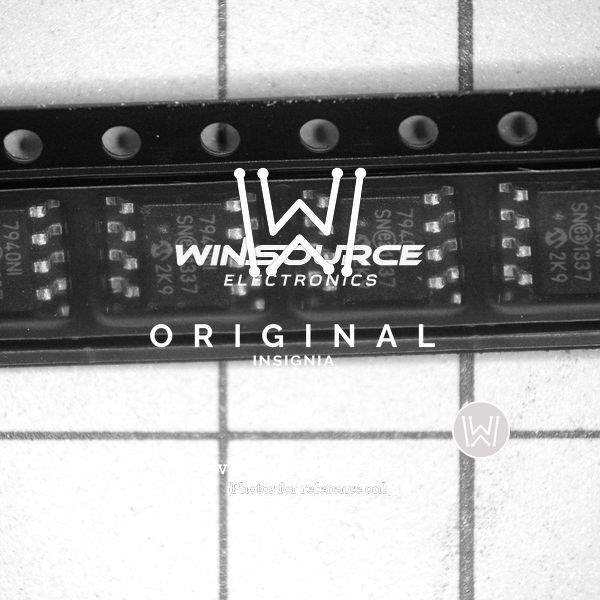

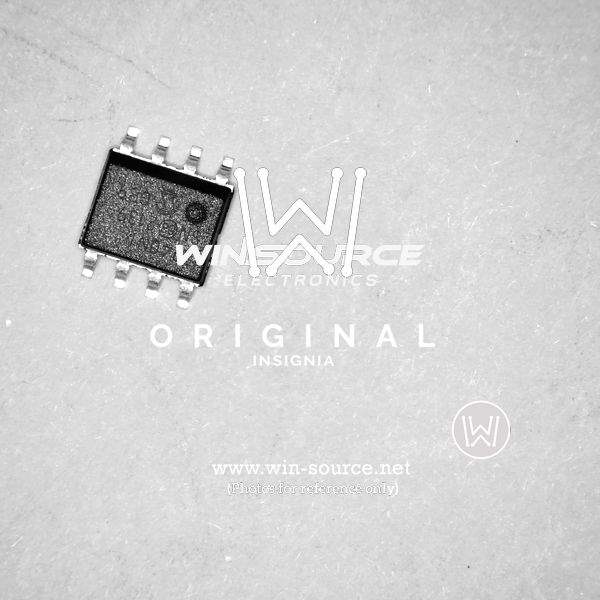

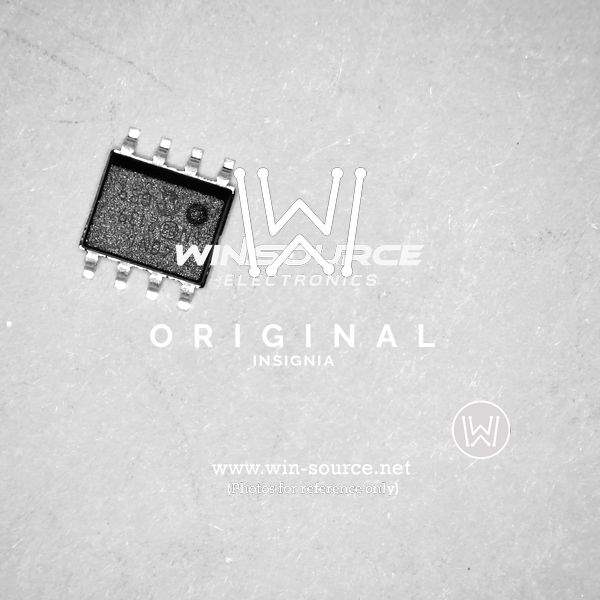

Encased in an 8-pin SOIC package, the MCP7940N-I/SN is designed for a broad array of applications, such as consumer electronics, office automation, industrial control systems, and networked devices. Its robust feature set ensures developers have the tools to maintain time-based control and logging activities with ease and precision.

In summary, the MCP7940N-I/SN from Microchip Technology is a versatile and reliable RTCC solution that brings together functionality and convenience, making it a go-to choice for designers looking to integrate a sophisticated timekeeping system into their products.
