Microchip Technology's MCP9700A-E/TO: Low-Power Linear Active Thermistor IC

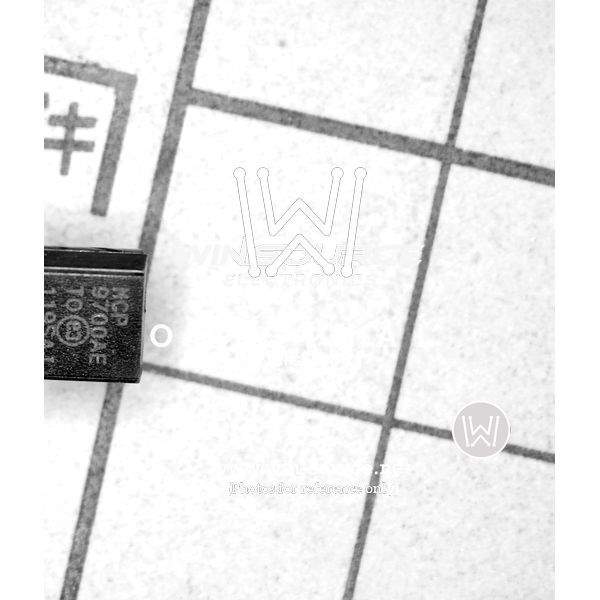

The MCP9700A-E/TO from Microchip Technology is a high-precision, low-power, linear active thermistor IC. This analog temperature sensor promises a cost-effective solution for temperature sensing applications. The device is encapsulated in a TO-92 package, which is widely used for through-hole mounting, making it suitable for a variety of electronic projects and commercial products.

One of the key features of the MCP9700A-E/TO is its linear temperature coefficient of 10 mV/°C, which simplifies the interface to a microcontroller's analog-to-digital converter (ADC). This linear relationship between voltage output and temperature eliminates the need for complex calculations within the microcontroller, streamlining the design process.

Key Features:

• Accuracy: The device offers an accuracy of ±2°C from 0°C to +70°C, providing reliable temperature readings for most consumer-grade applications.
• Operating Voltage Range: It operates at a low voltage range of 2.3V to 5.5V, making it compatible with most low-voltage systems and battery-operated devices.
• Low Power Consumption: With an operating current of just 6 µA (typical), this sensor is an excellent choice for power-sensitive applications.
• Wide Temperature Range: The MCP9700A-E/TO can measure temperatures from -40°C to +125°C, covering a broad range of environmental conditions.
• Simple Interface: The analog output can be directly connected to an ADC, providing a straightforward interface that reduces component count and design complexity.

The MCP9700A-E/TO is ideal for applications where space and power efficiency are critical. It is commonly used in systems such as consumer electronics, environmental controls, industrial equipment, and portable devices. Its ease of use and integration make it a popular choice among engineers and designers looking to incorporate temperature sensing capabilities into their systems without incurring significant development costs or requiring extensive technical expertise.

Overall, the MCP9700A-E/TO thermistor from Microchip Technology stands out for its simplicity, accuracy, and low-power operation, making it a versatile component for a wide range of temperature monitoring applications.
