Microchip Technology's MIC23159YML-TR

The MIC23159YML-TR is a high-efficiency, synchronous step-down regulator module from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This compact and integrated power module is designed to simplify the power supply design process, offering a robust and reliable solution that caters to a wide range of applications, including industrial systems, telecommunications, and consumer electronics.

With its input voltage range of 2.7V to 5.5V, the MIC23159YML-TR is versatile enough to be powered from various sources, including single-cell lithium-ion batteries, making it an excellent choice for portable devices. The module can deliver up to 4A of continuous output current, which means it can easily power most low-power to medium-power applications without the need for additional components.

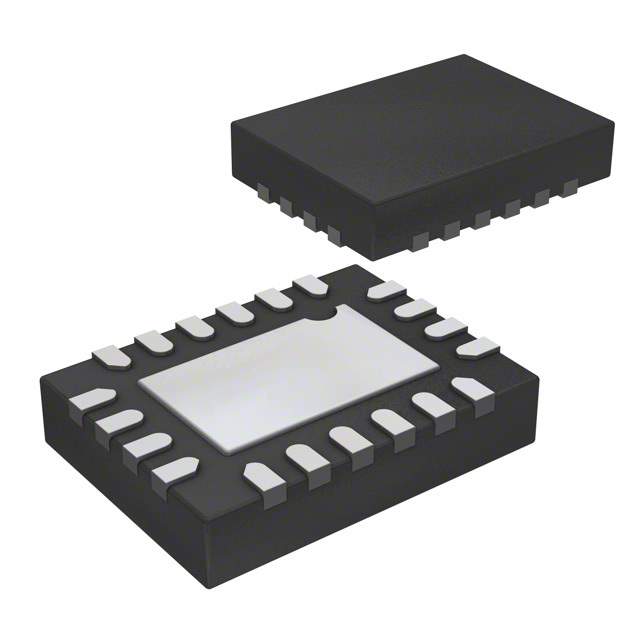

The MIC23159YML-TR boasts an impressive array of features that make it a standout choice for designers looking for efficiency and performance. It integrates a high-frequency PWM controller, MOSFETs, an inductor, and compensation components within a compact 2.5mm x 3mm x 1.1mm package. This level of integration not only saves valuable board space but also reduces external component count, which can help accelerate the design cycle and reduce overall system cost.

Efficiency is a key consideration for modern electronic devices, and the MIC23159YML-TR excels in this area. It features a high-efficiency operation with peak efficiencies up to 93%, which helps to minimize power loss and extend battery life in portable applications. The module also includes a Power Good (PG) output, enabling system monitoring and sequencing for enhanced reliability.

Furthermore, the device comes with programmable soft-start functionality to limit inrush current during startup, and it supports a 1MHz switching frequency, which allows the use of small surface-mount components. It also includes thermal shutdown protection, overcurrent protection, and under-voltage lockout, ensuring the safety and stability of the power supply under various conditions.

Overall, the MIC23159YML-TR from Microchip Technology is a comprehensive power management solution that combines high efficiency, ease of use, and robust protection features in a small footprint, making it an ideal choice for space-constrained and power-sensitive applications.
