MIC29300-5.0WT High-Current Low-Dropout Regulator

The MIC29300-5.0WT is a robust, high-current, low-dropout voltage regulator designed and manufactured by Microchip Technology. This high-performance component is engineered to deliver a fixed output voltage of 5.0V with an impressive current capability of up to 3A, making it an ideal choice for demanding applications that require a stable and reliable power supply.

With its low dropout voltage, the MIC29300-5.0WT ensures efficient operation even when the input voltage is very close to the output voltage, which is particularly useful in battery-powered devices where maximizing the usage of the available voltage is crucial. The regulator features a typical dropout voltage of just 0.410V at 3A of output current, which enhances its efficiency and makes it suitable for systems with tight power budgets.

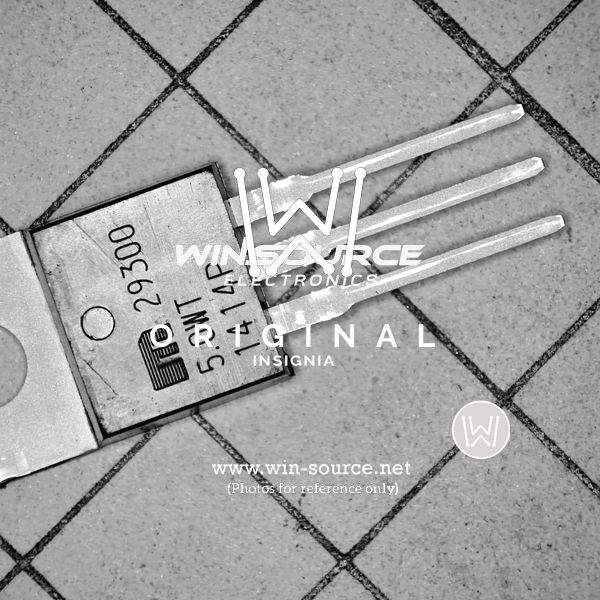

The device is packaged in a TO-220-3 form factor, which is known for its excellent thermal performance. This package enables the regulator to dissipate heat effectively, thus maintaining stability and reliability even under high current loads. The MIC29300-5.0WT also includes built-in protection features such as overcurrent protection and thermal shutdown, ensuring the safety and longevity of both the regulator and the system it powers.

Furthermore, the regulator boasts a fast transient response and low noise operation, which are critical for sensitive electronic applications, such as RF circuits and precision instrumentation. The MIC29300-5.0WT also supports the addition of an external capacitor to the output, which can further improve the regulator's noise performance and output stability.

Designed for a wide range of applications, including simple linear power supplies, post-regulation for switching supplies, or battery chargers, the MIC29300-5.0WT is a versatile component that offers high reliability and performance. Its robust design and comprehensive feature set make it a go-to choice for engineers and designers looking for a high-quality power management solution.

For detailed specifications and application guidance, refer to the official datasheet and design resources provided by Microchip Technology.
