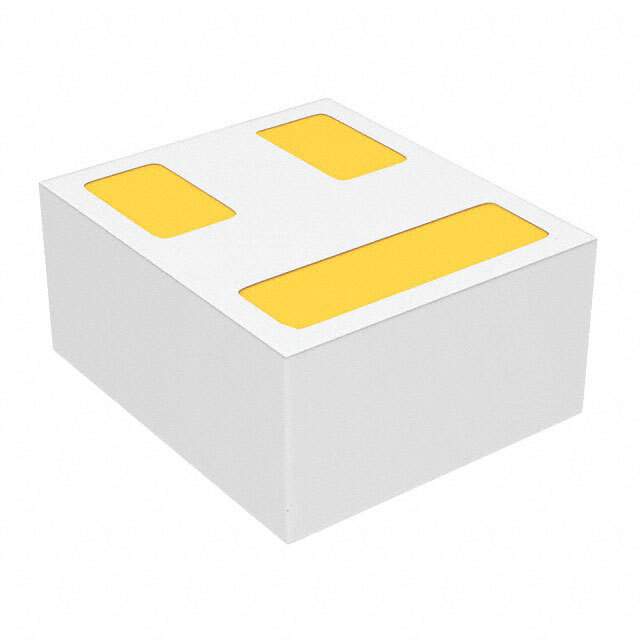

The Texas Instruments CSD13380F3T is a state-of-the-art N-Channel NexFET™ power MOSFET designed for high-performance power conversion applications. This compact and efficient device is ideal for a wide range of uses, from consumer electronics to industrial systems, thanks to its low on-resistance and high switching speeds.

Key Features

• Ultra-Low On-Resistance: The CSD13380F3T boasts an exceptionally low on-resistance (R_DS(on)) of just 8.7 mΩ at V_GS = 4.5 V, which significantly reduces conduction losses and enhances overall efficiency in power conversion circuits.
• Advanced Packaging: Housed in a compact 3-pin SOT-23 package, this MOSFET maximizes power density and minimizes footprint, making it an excellent choice for space-constrained applications.
• High Continuous Drain Current: It supports a high continuous drain current (I_D) of up to 12 A, allowing it to handle substantial power levels in a small form factor.
• Fast Switching Performance: The device's fast switching capabilities ensure minimal switching losses and are well-suited for high-frequency power supplies and DC-DC converters.
• Robust Thermal Performance: The CSD13380F3T is designed to operate reliably over a wide temperature range, with an operating junction temperature from -55°C to 150°C, ensuring stability and performance under varying environmental conditions.

Applications

• DC-DC Converters
• Power Management for CPUs, GPUs, and Memory
• Point of Load (POL) Modules
• Battery Powered Devices
• Synchronous Buck Converters

With its combination of low on-resistance, high current capability, and fast switching speeds, the Texas Instruments CSD13380F3T MOSFET is an excellent choice for designers looking to optimize their power management solutions. Whether it's for portable devices or high-performance computing applications, the CSD13380F3T provides the reliability and efficiency needed for today's demanding electronic environments.
