Product Overview

The MIC29302AWU-TR is a robust, high-current, low-dropout regulator (LDO) from Microchip Technology, designed to provide a stable power supply in a wide range of electronic applications. This LDO is capable of delivering up to 3A of continuous output current with a low dropout voltage, making it an ideal choice for systems requiring a high level of performance and reliability.

Key Features

• High Output Current: The MIC29302AWU-TR is capable of delivering up to 3A of continuous output current, catering to the needs of power-hungry circuits.
• Low Dropout Voltage: This regulator offers a low dropout voltage, which ensures efficient operation even when the input voltage is close to the output voltage, enhancing battery life in portable applications.
• Adjustable Output: The output voltage can be adjusted from 1.24V to 26V using external resistors, providing flexibility for a wide range of design requirements.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and current-limiting features to protect the circuitry from damage due to excessive heat or overcurrent conditions.
• Wide Input Voltage Range: It operates over a broad input voltage range, accommodating various power sources and ensuring compatibility with diverse system architectures.
• Stable with Low-ESR Capacitors: The MIC29302AWU-TR remains stable with low-ESR output capacitors, which reduces the size and cost of the capacitors needed for proper regulation.

Applications

The versatile nature of the MIC29302AWU-TR makes it suitable for a multitude of applications, including:

• High-efficiency linear power supplies
• Battery-powered devices
• Post-regulation for switching supplies
• Computer add-on cards
• Microprocessor and microcontroller power supplies

Package and Availability

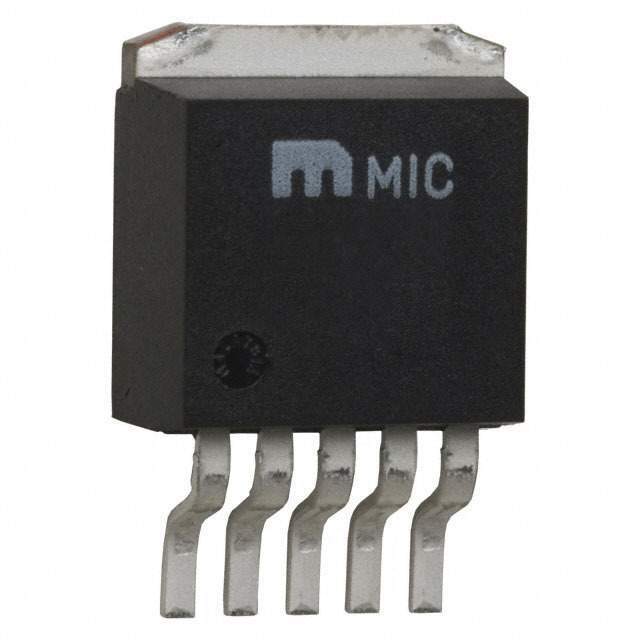

The MIC29302AWU-TR is available in a thermally enhanced, 5-lead TO-263 package, which aids in heat dissipation during operation. It is also offered in tape and reel packaging, denoted by the '-TR' suffix, making it suitable for automated, high-volume production environments.

As a product of Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions, the MIC29302AWU-TR meets the highest standards of quality and performance.
