Product Overview: MIC2941AWU-TR by Microchip Technology

The MIC2941AWU-TR from Microchip Technology is a robust Low-Dropout Regulator (LDO) designed to deliver a high current output with a minimal voltage drop. This powerful component is an ideal choice for applications that require efficient power regulation and a stable output voltage, even under varying load conditions. The MIC2941AWU-TR is part of Microchip's extensive portfolio of power management solutions, which are renowned for their reliability and performance.

Key Features

• High Output Current: Capable of delivering up to 1.25A of continuous output current, this LDO can power a wide range of devices and circuits.
• Low Dropout Voltage: The MIC2941AWU-TR maintains a low dropout voltage, ensuring efficient operation and minimal power loss, which is critical for battery-powered applications.
• Adjustable Output: With an output voltage range that can be adjusted from 1.24V to 26V, the regulator provides flexibility for various design requirements.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and current limit features protect the device and the application from potential damage due to overheating or excessive current draw.
• Error Flag: An error flag output warns of a low output voltage, which is often indicative of thermal overload or current limiting.

Applications

The versatility of the MIC2941AWU-TR makes it suitable for a broad array of applications, including:

• Consumer Electronics
• Automotive Systems
• Telecommunications
• Industrial Equipment
• Computer Peripherals

Package and Availability

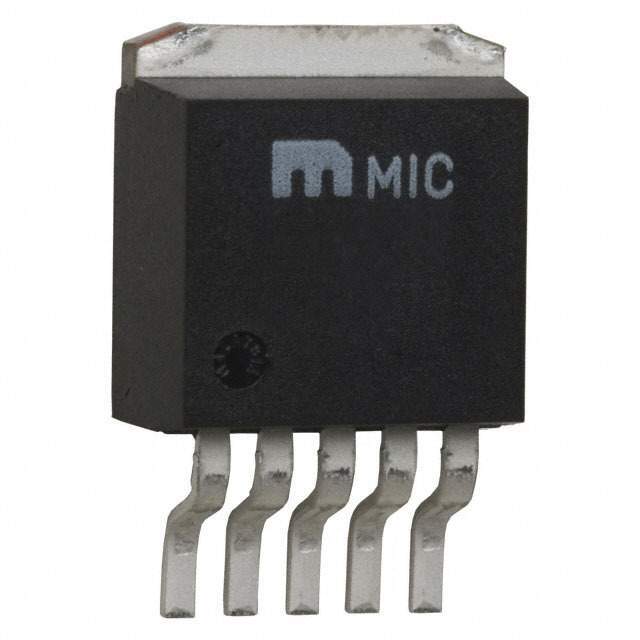

The MIC2941AWU-TR is available in a TO-263 (D2PAK) package, which is conducive to efficient heat dissipation and is suitable for high-current applications. This package is also compatible with standard surface-mount technology, allowing for ease of integration into various circuit designs. The "TR" suffix indicates that the product is provided in tape and reel packaging, which is ideal for automated manufacturing processes.

In summary, the MIC2941AWU-TR from Microchip Technology is a high-performance LDO that offers a combination of high current capability, low dropout voltage, and comprehensive protection features, making it a reliable choice for power regulation needs across numerous electronic applications.
