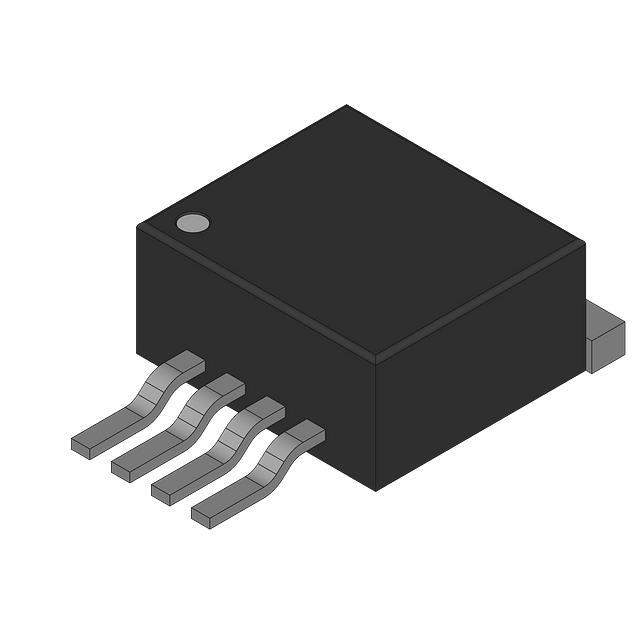

MIC5209-2.5BU

Part No MIC5209-2.5BU
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 0.5A TO263-5
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 2.5V
Dropout Voltage-Max 0.6V @ 500mA
Output Current 500mA
Operating Supply Current 170μA to 25mA
PSRR 75dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 0.35V @ 500mA
Mounting SMD (SMT)
Case / Package TO-263-5
Win Source Part Number 138503-MIC5209-2.5BU
Ultra Librarian 3D Model Ultra Librarian MIC5209-2.5BU CAD Model

Description

MIC5209-2.5BU Voltage Regulator from Microchip Technology

The MIC5209-2.5BU is a highly efficient linear voltage regulator designed and manufactured by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This regulator offers a fixed output voltage of 2.5V, making it an ideal power management solution for a wide range of applications including personal computing devices, consumer electronics, and industrial equipment.

With its low dropout voltage feature, the MIC5209-2.5BU can maintain a consistent output voltage even when the input voltage is very close to the output voltage, enhancing system efficiency and reliability. This characteristic is particularly beneficial in battery-powered devices where maximizing the usage of the available voltage is crucial.

The device is capable of delivering up to 500mA of output current, which suits it for moderate power requirements. Its high accuracy output voltage ensures stable power delivery for sensitive electronic components, while the built-in thermal overload protection safeguards the device and the connected components from damage due to excessive heat.

Additionally, the MIC5209-2.5BU features low noise performance, making it suitable for noise-sensitive applications such as audio or RF systems. The regulator also includes a fast transient response, which helps maintain stable voltage levels despite rapid changes in load, thus preserving the integrity and performance of the powered circuit.

For design flexibility, the MIC5209-2.5BU is offered in a TO-220-3 package, which is known for its robustness and ease of handling. This package is conducive to effective heat dissipation, allowing the regulator to operate within its temperature range without the need for additional cooling mechanisms under normal conditions.

Microchip Technology's commitment to quality ensures that the MIC5209-2.5BU meets the stringent requirements for performance and reliability. Its combination of features, such as low dropout voltage, high output accuracy, and thermal protection, make it a versatile choice for designers looking to create stable and efficient power supply circuits.
