Microchip Technology's PIC16F630-I/SL Microcontroller

The PIC16F630-I/SL is a versatile 8-bit microcontroller from Microchip Technology, designed for embedded applications that require a compact, low-power solution. This particular model is part of the popular PIC16 family, known for its user-friendly interface and robust performance in a wide range of devices.

Key Features

• Flash Memory: The PIC16F630-I/SL comes with 1.75KB of on-chip flash memory, providing ample space for application code and offering the convenience of in-circuit serial programming.
• RAM and EEPROM: It includes 64 bytes of RAM for data storage and 128 bytes of EEPROM for non-volatile memory storage, which is ideal for storing configuration settings or small amounts of data that must be preserved during power cycles.
• Operating Speed: The microcontroller operates at a speed of up to 20MHz, delivering the processing power required for a wide range of applications, from simple to moderately complex tasks.
• I/O Pins: It offers 12 I/O pins, providing flexibility for interfacing with sensors, actuators, and other peripherals. These pins are highly configurable, supporting various digital and analog functionalities.
• Power Efficiency: Designed with power efficiency in mind, the PIC16F630-I/SL supports a power-saving sleep mode, which significantly reduces power consumption when the device is not in active use.
• Temperature Range: The microcontroller operates within an industrial temperature range of -40°C to +85°C, ensuring reliable performance under extreme conditions.

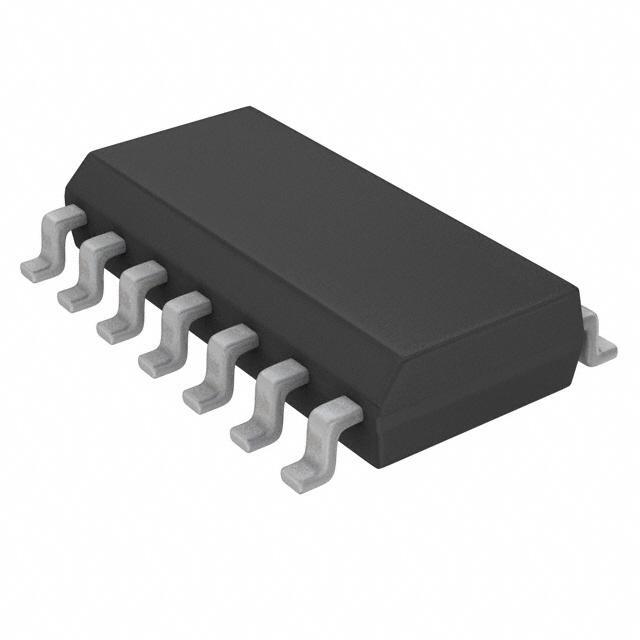

• Packaging: The SL package indicates a Small Outline (SOIC) package, which is surface-mountable and ideal for space-constrained applications.

Applications

The PIC16F630-I/SL is an excellent choice for a variety of applications, such as:

• Consumer electronics
• Automotive systems
• Industrial controls
• Smart sensors
• Home automation devices

With its robust set of features and Microchip's reputation for high-quality products, the PIC16F630-I/SL is a reliable microcontroller that can serve as the heart of many embedded systems, offering both flexibility and efficiency for designers and engineers.
