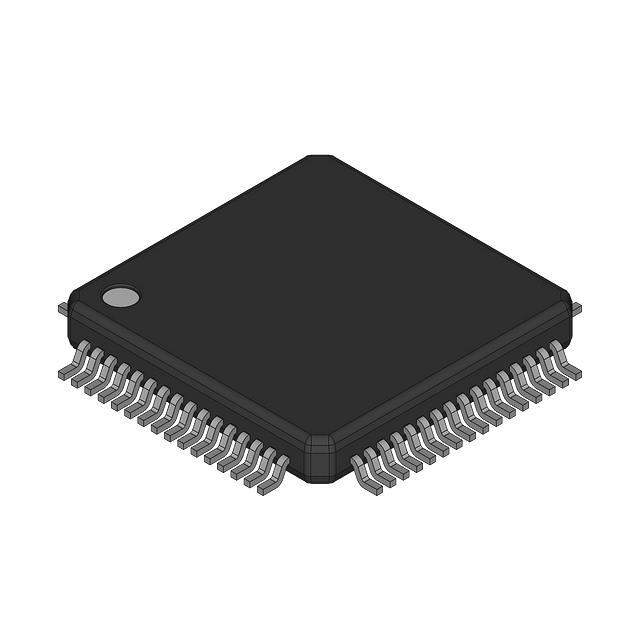

HD64F3694GFPV Real Image
Same model may have multiple batches, images only for reference.

HD64F3694GFPV

Part No HD64F3694GFPV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 64LQFP / MCU 16-bit H8/300H CISC 32KB Flash 3.3V/5V 64-Pin LFQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8/300H Tiny
Packaging Tray
Core Processor H8/300H
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, SCI
Peripherals LVD, POR, PWM, WDT
Number of I/O 29
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
RAM Size 2K x 8
Supply Voltage 3 V ~ 5.5 V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 75°C (TA)
Package 64-LQFP
Manufacturer Package 64-LQFP (10x10)
Win Source Part Number 775820-HD64F3694GFPV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 160
Family Name HD64F3694
Introduction Date March 20, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HD64F3694GFPV CAD Model

Description

Its supply and demand status is limited.

  • Series: H8 H8/300H Tiny
  • Win Source Part Number: 775820-HD64F3694GFPV
  • Core Processor: H8/300H
  • Speed: 20MHz
  • Core Size: 16-bit
  • I/O: 29
  • Program Memory Size: 32KB
  • RAM Size: 2K x 8
  • Data Converters: A/D 8x10b
  • Oscillator Type: Internal
  • Connectivity: I2C, SCI
  • Peripherals: LVD, POR, PWM, WDT
  • Supply Voltage: 3V to 5.5V
  • Operating Temperature Range: -20°C to 75°C
