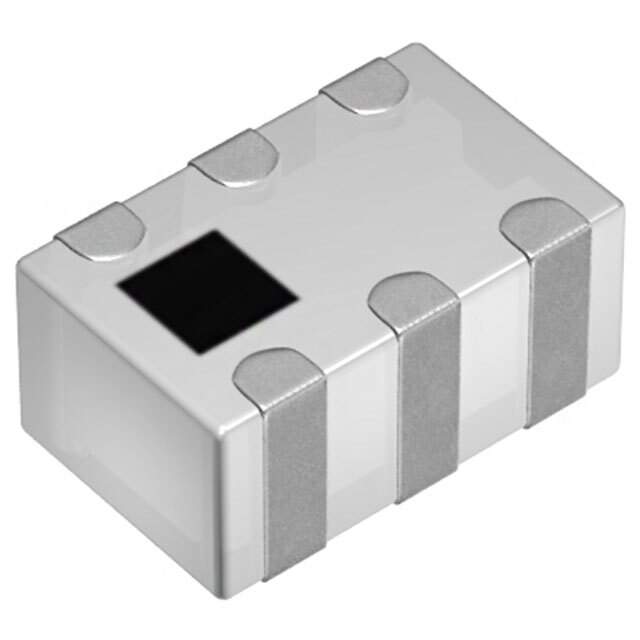

HHM15112A1 Real Image
Same model may have multiple batches, images only for reference.

HHM15112A1

Part No HHM15112A1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 900MHZ-2.2GHZ 75/100 0805 / RF Balun 900MHz ~ 2.2GHz 75 / 100Ohm 0805 (2012 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Frequency Range 900MHz ~ 2.2GHz
Impedance - Unbalanced/Balanced 75 / 100Ohm
Phase Difference 180° ±15°
Insertion Loss (Max) 1.1dB
Return Loss (Min) 10dB
Package / Case 0805 (2012 Metric), 6 PC Pad
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 445-175630-6,445-175630-2,445-175630-1
Standard Package 2,000
Win Source Part Number 1123563-HHM15112A1
Ultra Librarian 3D Model Ultra Librarian HHM15112A1 CAD Model

Description

The HHM15112A1 is a balun component from TDK Corporation.

  • Series: HHM
  • Frequency Range: 900MHz to 2.2GHz
  • Impedance: 75/100Ohm
  • Phase Difference: 180° ±15°
  • Insertion Loss: 1.1dB
  • Return Loss: 10dB
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Package/Case: 0805 (2012 Metric), 6 PC Pad
