Products specifications

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® XLP™ 18K, Functional Safety (FuSa)
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 64MHz
Connectivity CANbus, I²C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 25
Program Memory Size 32KB (16K x 16)
Program Memory Type FLASH
EEPROM Size 1K x 8
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 2.3V ~ 5.5V
Data Converters A/D 24x12b; D/A 1x5b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number PIC18F25
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1352763-PIC18F25K83-E/SO
Ultra Librarian 3D Model Ultra Librarian PIC18F25K83-E/SO CAD Model

Description

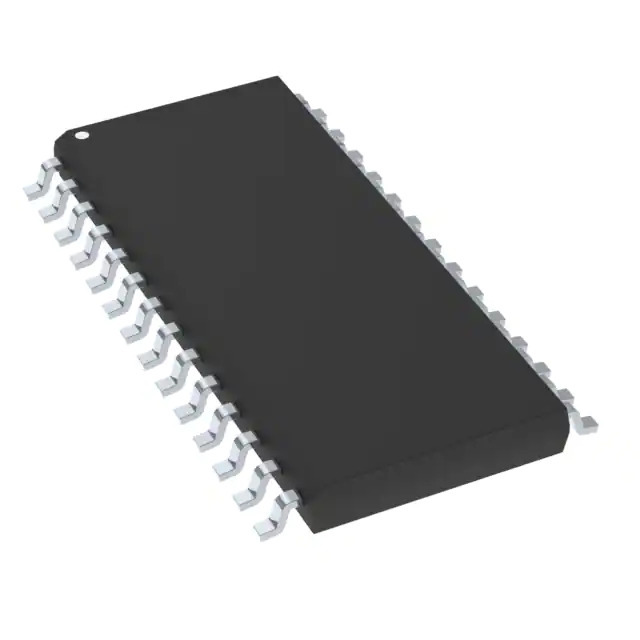

Microchip Technology PIC18F25K83-E/SO

The PIC18F25K83-E/SO from Microchip Technology is a robust and versatile 8-bit microcontroller that offers an ideal solution for a wide range of embedded applications. This microcontroller is part of the PIC18 K83 family and is specifically designed to meet the demands of low-power and high-performance systems.

Encased in a small-outline (SO) package, the PIC18F25K83-E/SO is equipped with an Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels. It boasts a 32 MHz internal oscillator, which provides a precise clock source for the execution of instructions with speed and efficiency. The device features 32KB of flash memory, allowing ample space for application code, and 2KB of RAM for data storage, which is essential for multitasking and real-time operations.

One of the standout features of the PIC18F25K83-E/SO is its extensive set of integrated peripherals. It includes a 12-bit Analog-to-Digital Converter (ADC) with Computation (ADCC), offering advanced control and monitoring capabilities. The device also has a 16-bit PWM module, which is invaluable for motor control, LED dimming, and other applications requiring precise pulse width modulation.

Communication with other devices is made simple with the inclusion of multiple serial communication modules, such as UART, SPI, and I2C interfaces. This makes the PIC18F25K83-E/SO an excellent choice for IoT applications, where connectivity and data exchange are crucial.

For enhanced system reliability, the microcontroller features a Power-On Reset (POR), Power-Up Timer (PWRT), and Oscillator Start-Up Timer (OST), which ensure stable operation during power-up sequences. The Brown-Out Reset (BOR) and Extended Watchdog Timer (WDT) provide additional protection against unexpected power fluctuations and software anomalies.

The PIC18F25K83-E/SO also supports low-power modes, making it suitable for battery-powered devices where energy efficiency is key. With its wide operating voltage range and the ability to work in extreme temperature conditions, this microcontroller is a reliable choice for industrial, automotive, and consumer electronic applications.

Overall, the PIC18F25K83-E/SO from Microchip Technology is a high-performance microcontroller that combines advanced features with ease of use, making it an excellent option for designers looking to create sophisticated and power-conscious electronic systems.
