Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features PIC series Microcontroller IC 8-Bit 64MHz 64KB (32K x 16) FLASH 64-TQFP (10x10)
Manufacturer Microchip Technology
Series PIC® XLP™ 18K
Package Tray
Core Processor PIC
Core Size 8-Bit
Speed 64MHz
Connectivity ECANbus, I2C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
Number of I/O 54
Program Memory Size 64KB (32K x 16)
Program Memory Type FLASH
EEPROM Size 1K x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 11x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 64-TQFP
Case / Package 64-TQFP (10x10)
Family Name PIC18F66K80
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 160
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 889684-PIC18F66K80-E/PT
Ultra Librarian 3D Model Ultra Librarian PIC18F66K80-E/PT CAD Model

Description

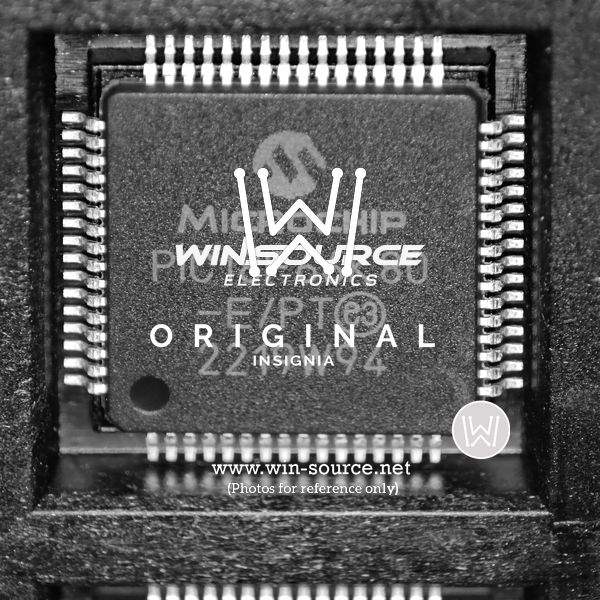

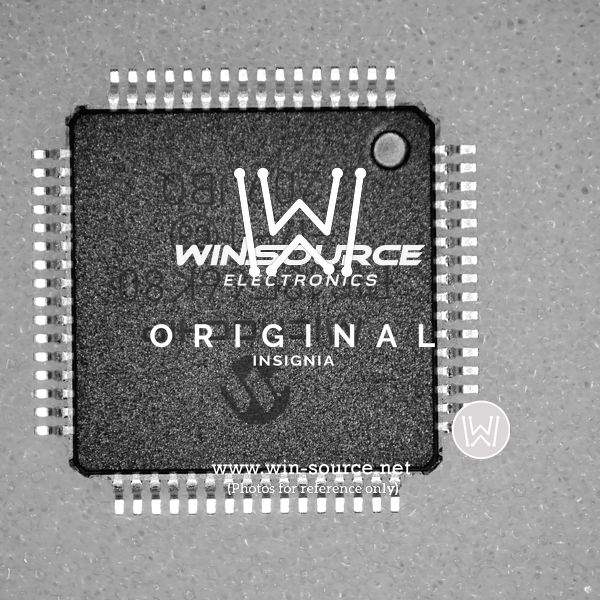

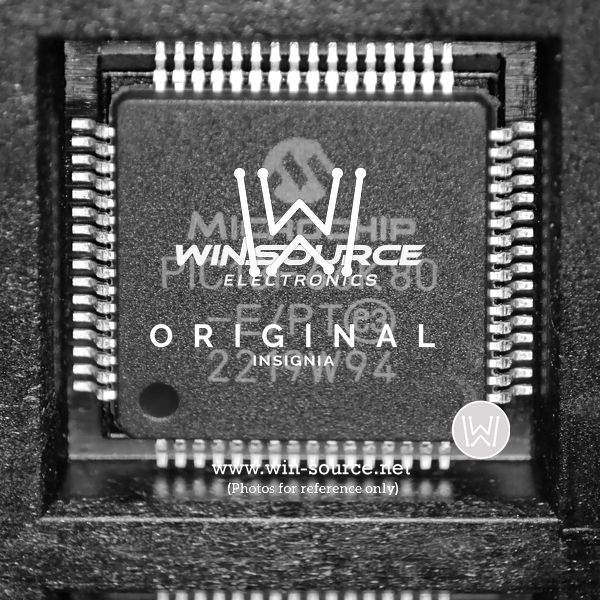

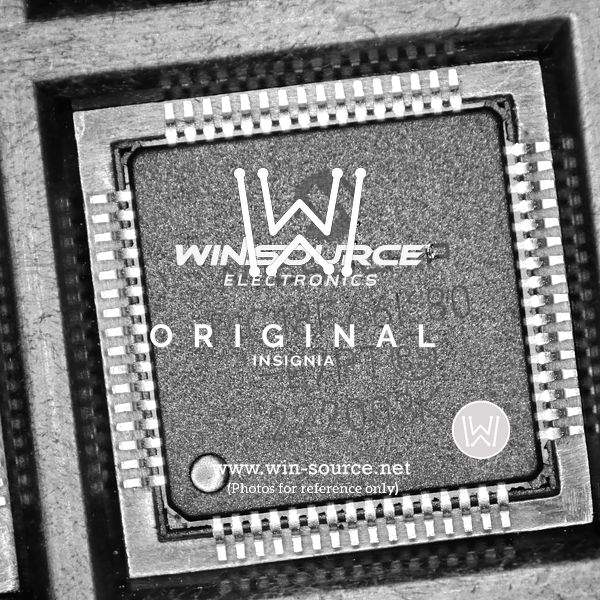

Microchip Technology's PIC18F66K80-E/PT Microcontroller

The PIC18F66K80-E/PT is a high-performance microcontroller unit (MCU) from Microchip Technology, designed for advanced applications in automotive, industrial control, and consumer electronics. This microcontroller is part of Microchip's renowned PIC18F K80 family, known for its robust integration of features and efficient performance in a wide range of operating conditions.

The PIC18F66K80-E/PT is built with a powerful PIC18 core, featuring a modified Harvard architecture that allows it to perform at speeds of up to 16 MIPS (Million Instructions Per Second) at a clock frequency of 64 MHz. This speed is achieved thanks to its advanced 16-bit instruction set and a 32-level deep hardware stack, which ensures that the MCU can handle complex tasks with ease.

One of the standout features of this MCU is its integrated ECAN module, which provides support for the Controller Area Network (CAN) 2.0B protocol, a standard in automotive and industrial communication. This allows for reliable and secure data transmission between multiple microcontrollers, which is essential in systems that require a high degree of connectivity and fault tolerance.

The PIC18F66K80-E/PT comes with 64 KB of flash memory and 4 KB of RAM, offering ample space for application code and data storage. Its memory endurance and self-write capabilities ensure long-term reliability and the possibility of in-field firmware updates.

Additional features include a range of built-in peripherals such as an 8 x 10-bit Analog-to-Digital Converter (ADC), multiple communication interfaces like SPI, I2C, and USART, and dual Comparators. The device also boasts enhanced power management options with nanoWatt XLP technology, allowing for low-power operation in sleep, idle, and active modes, which is critical for battery-powered or energy-sensitive applications.

The PIC18F66K80-E/PT is available in a 64-pin TQFP (Thin Quad Flat Pack) package, making it suitable for space-constrained applications while still providing a multitude of I/O options for interfacing with sensors, actuators, and other electronic components.

With its robust set of features, the PIC18F66K80-E/PT from Microchip Technology is a versatile and reliable choice for developers looking to create sophisticated and power-efficient applications.
