Product Overview: PIC24FJ256GL405-E/PT

The PIC24FJ256GL405-E/PT is a high-performance microcontroller unit (MCU) from Microchip Technology, renowned for its robust design and versatile features. This 16-bit MCU is part of the PIC24F family and is specifically engineered to cater to a wide range of applications requiring efficient power management, connectivity, and real-time control.

Key Features

• Core: The device is built around a modified Harvard architecture that ensures a seamless execution of instructions with a maximum speed of 16 MIPS (Million Instructions Per Second) at 32 MHz. It operates at a nominal voltage range of 2.2V to 3.6V, making it suitable for low-power applications.
• Memory: It boasts an ample 256KB of flash memory and 16KB of RAM, allowing for substantial program storage and efficient data handling.
• Digital Communication: The MCU includes several communication interfaces such as I²C, SPI, and UART, enabling it to connect with a variety of peripherals and other MCUs.
• Timers and PWM: With multiple 16-bit timers, a real-time clock/calendar, and PWM outputs, it is well-equipped for timing-related tasks and motor control applications.
• Analog Features: The device comes with a 10-bit Analog-to-Digital Converter (ADC) with up to 24 channels, providing accurate analog signal measurements for sensors and other input devices.
• Extended Temperature Range: It is designed to operate reliably in extreme environments with a temperature range from -40°C to +85°C.

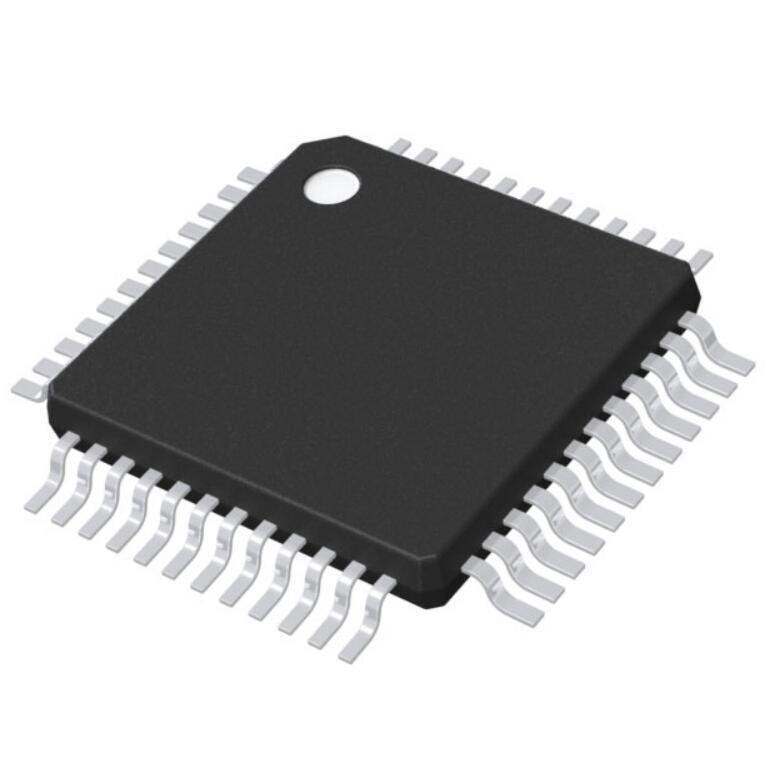

• Packaging: The PIC24FJ256GL405-E/PT is available in a 44-pin TQFP package, which is suitable for space-constrained applications.

Applications

This MCU is ideal for a variety of applications, including industrial control systems, automotive electronics, medical devices, IoT (Internet of Things) gadgets, and consumer electronics. Its robust feature set ensures that it can handle complex tasks while maintaining power efficiency.

Support and Resources

Microchip Technology provides extensive support for the PIC24FJ256GL405-E/PT, including development tools, software libraries, and documentation to facilitate rapid development and deployment. Engineers and developers can access Microchip's online resources for sample code, reference designs, and technical support to streamline the product development process.
