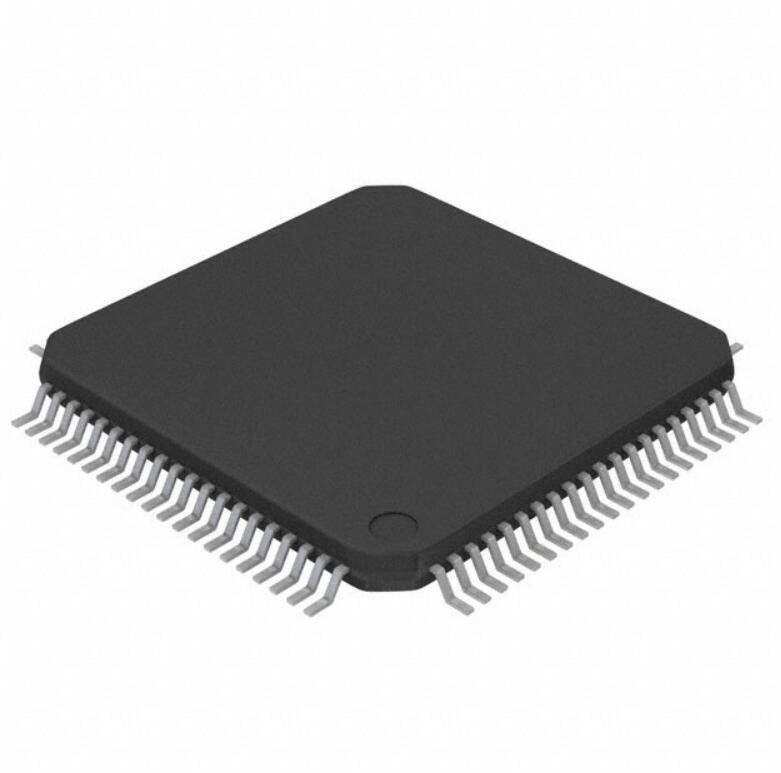

Microchip Technology PIC24FJ256GL408-I/PT Microcontroller

The PIC24FJ256GL408-I/PT is a high-performance microcontroller (MCU) from Microchip Technology, designed to cater to a wide range of applications that require efficient power management, advanced analog features, and substantial code and data storage. This 16-bit MCU is part of the PIC24F family, renowned for its low power consumption, robust peripheral set, and flexible interfacing capabilities.

At the heart of the PIC24FJ256GL408-I/PT is a modified Harvard architecture that allows it to execute instructions efficiently, with a maximum CPU speed of 32 MHz. The device comes equipped with 256 KB of Flash memory, providing ample space for complex applications and 16 KB of RAM for temporary data storage. The Flash memory also supports live update capability, allowing for firmware upgrades in the field without interrupting the operation of the device.

This microcontroller boasts a rich set of peripherals, including configurable logic cells (CLCs) that extend the capabilities of fixed peripherals by allowing for customizable combinations of logic operations. It also features Direct Memory Access (DMA) channels, which enable data transfers between memory and peripherals without CPU intervention, significantly improving data throughput and system performance.

For applications requiring precision and accuracy, the PIC24FJ256GL408-I/PT offers advanced analog features such as a 10-bit Analog-to-Digital Converter (ADC) with up to 48 channels, and Charge Time Measurement Unit (CTMU) for touch sensing or precise time measurement. Additionally, it supports various communication interfaces, including UART, SPI, and I2C, enabling easy integration into embedded systems requiring connectivity.

The device is available in a 64-pin TQFP package and is characterized for extended temperature ranges, making it suitable for industrial and automotive applications. Its low power modes, including Idle and Sleep, help in conserving power for battery-operated devices. With its comprehensive features and robust design, the PIC24FJ256GL408-I/PT from Microchip Technology is an ideal choice for designers looking for a versatile and reliable microcontroller solution.

Developers can also take advantage of Microchip's extensive support and development ecosystem, including software libraries, development boards, and the MPLAB® X Integrated Development Environment (IDE), to accelerate the design process and bring products to market faster.
