Category Integrated Circuits (ICs) - Interface - Specialized
Mfr Microchip Technology
Package Tray
Product Status Active
Applications Controller
Interface LPC
Package / Case 128-TQFP
Supplier Device Package 128-VTQFP (14x14)
Mounting Type Surface Mount
Base Product Number SCH3106
Standard Package 90 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.39.0001
Win Source Part Number 316653-SCH3106-NU
Ultra Librarian 3D Model Ultra Librarian SCH3106-NU CAD Model

Description

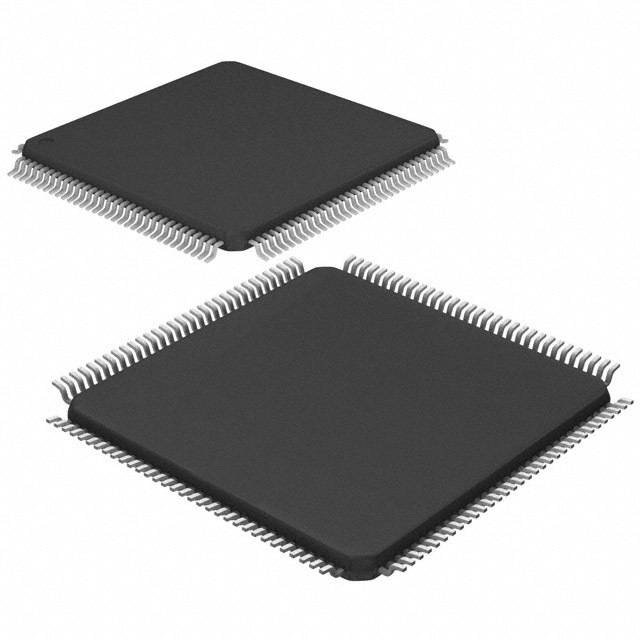

Microchip Technology's SCH3106-NU: A Versatile Super I/O Controller

The SCH3106-NU from Microchip Technology is a highly integrated Super I/O (Input/Output) controller that offers a comprehensive solution for embedded systems. This advanced chip is designed to manage a variety of essential interface functions commonly required in modern computing environments. It is particularly suitable for industrial PCs, embedded controllers, and point-of-sale systems, where reliability and versatility are paramount.

Key Features:

  • Multiple Interface Support: The SCH3106-NU boasts an array of interfaces including a Keyboard Controller (KBC), a Mouse Controller, Serial Ports (UARTs), and Parallel Port, which are all integral for facilitating communication between the system and peripheral devices.
  • Enhanced Power Management: With its built-in Advanced Configuration and Power Interface (ACPI) support, this Super I/O controller helps in reducing overall power consumption, making it ideal for energy-efficient applications.
  • Flexible I/O Addressing: The device provides flexible I/O addressing capabilities, allowing for seamless integration into a variety of system architectures without hardware conflicts.
  • Watchdog Timer: A programmable watchdog timer is included to ensure system reliability by monitoring system operation and triggering a system reset in case of software malfunctions.

Technical Specifications:

  • General Purpose Input/Output (GPIO) pins for versatile interfacing
  • Floppy Disk Drive (FDD) controller supporting legacy disk drives
  • Low Pin Count (LPC) interface for efficient motherboard communication
  • Serial Peripheral Interface (SPI) for high-speed serial communication

The SCH3106-NU is engineered to deliver high performance and reliability for systems that require robust I/O functionality. It simplifies design complexity and reduces the need for multiple discrete components, offering a cost-effective solution for system developers. The inclusion of legacy support ensures compatibility with both new and existing hardware, making the SCH3106-NU a versatile choice for a wide range of applications.

With Microchip Technology's commitment to quality, the SCH3106-NU Super I/O controller stands as a testament to the company's dedication to providing innovative and reliable solutions for the embedded and industrial market segments.
