Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Reference
Mfr Microchip Technology
Series Military, MIL-STD-883
Package Tray
Product Status Active
Reference Type Series
Output Type Fixed
Voltage - Output (Min/Fixed) 2.5V
Current - Output 10 mA
Tolerance ±1%
Temperature Coefficient 10ppm/°C
Voltage - Input 4.5V ~ 40V
Current - Supply 2mA
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Through Hole

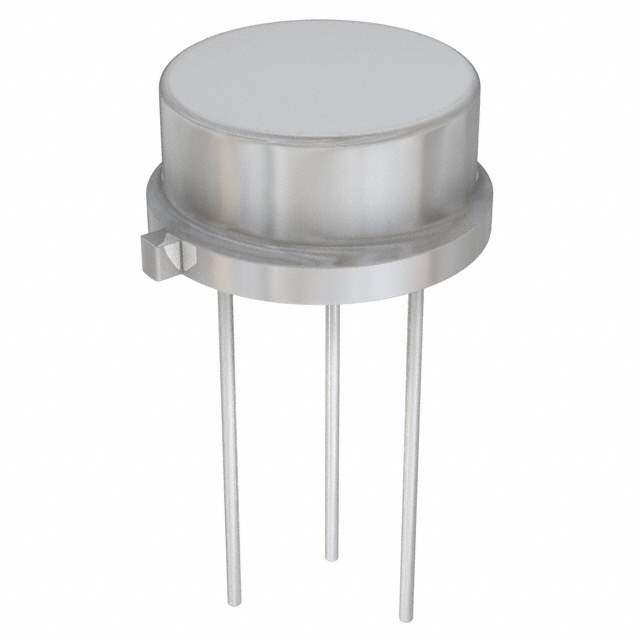

Package / Case TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39
Base Product Number SG3503
Standard Package 25 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 665674-SG3503T
Ultra Librarian 3D Model Ultra Librarian SG3503T CAD Model

Description

The SG3503T from Microchip Technology is a precision voltage reference designed for optimal stability and accuracy. This device is a critical component for applications requiring a stable reference voltage over a wide range of operating conditions, including industrial, automotive, and consumer electronics.

With its tight output voltage tolerance and low temperature coefficient, the SG3503T ensures reliable performance even under the most demanding circumstances. The device features a 2.5V output voltage, making it suitable for many analog circuits that require a precise reference voltage.

One of the key benefits of the SG3503T is its low dynamic impedance, which helps maintain a stable output voltage despite variations in load conditions. This characteristic is particularly important for maintaining accurate analog-to-digital or digital-to-analog conversions, where voltage stability is crucial for the integrity of the conversion process.

The SG3503T is designed with a hermetically sealed package, providing excellent long-term stability and protection against harsh environmental conditions. This makes it an ideal choice for systems that are exposed to extreme temperatures, humidity, or other challenging operating environments.

Furthermore, the SG3503T is easy to implement in a wide range of circuit configurations. It can be used in series, shunt, and operational amplifier configurations, providing designers with flexibility in their system designs. Its low power consumption also makes it suitable for battery-operated devices where power efficiency is a priority.

Microchip Technology's commitment to quality ensures that the SG3503T meets stringent industry standards for performance and reliability. Whether you're developing precision instrumentation, power supplies, or any other application that demands an accurate reference voltage, the SG3503T is an excellent choice to ensure your product's performance meets your exacting requirements.

For detailed specifications, application notes, and support documentation, visit Microchip Technology's official website or contact their customer support team.
