Microchip Technology SST39SF010A-70-4C-PH Flash Memory

The Microchip Technology SST39SF010A-70-4C-PH is a high-performance CMOS Multi-Purpose Flash (MPF) memory chip that offers a reliable storage solution for a wide range of applications. This device is a 1 Megabit (128K x 8) flash memory with a 70ns access time, making it a suitable choice for applications that require fast data access and high reliability.

This flash memory chip operates on a single 4.5V to 5.5V power supply, which is ideal for battery-powered devices and embedded systems. The SST39SF010A-70-4C-PH is designed with Microchip's proprietary, high-performance CMOS SuperFlash technology, which provides fixed erase and program times regardless of the number of erase/program cycles that have been performed. This ensures consistent performance throughout the product's lifespan.

One of the key features of this product is its sector erase architecture, which allows the user to flexibly erase either the entire chip or just specific blocks, thereby simplifying data management and improving the efficiency of memory usage. The device supports both Erase and Program operations with a typical erase time of 18 milliseconds and a byte-program time of 14 microseconds.

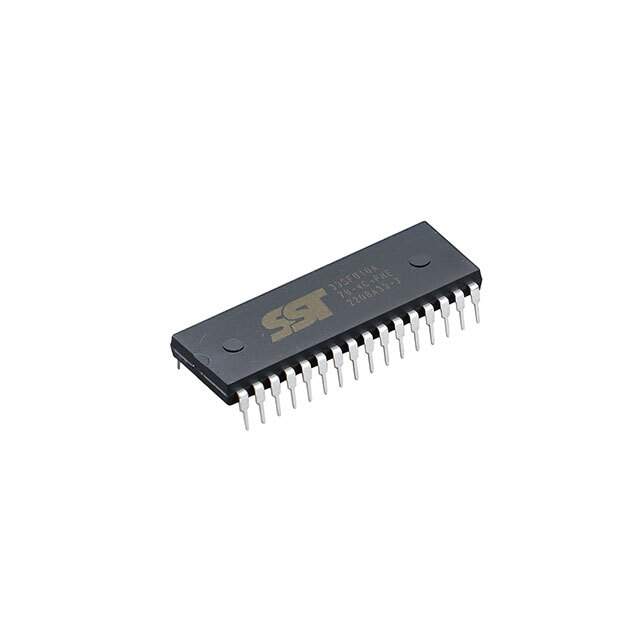

The SST39SF010A-70-4C-PH is packaged in a 32-pin PDIP (Plastic Dual In-line Package), which is widely used and easily integrated into a variety of circuit boards. Its compatibility with JEDEC standards ensures that it can be used as a drop-in replacement for other standard flash memory devices, providing designers with a straightforward upgrade path without the need for extensive redesigns.

Additional features such as low power consumption and automatic write timing with an end-of-write detection signal (Data# Polling) make this device not only energy efficient but also easy to implement in systems where minimal user intervention is desired. The SST39SF010A-70-4C-PH is also equipped with a software data protection mechanism to prevent accidental erasure or writing, thereby securing the integrity of the data stored within.

In summary, the SST39SF010A-70-4C-PH from Microchip Technology is a versatile and reliable flash memory component that provides fast access times, flexible erase capabilities, and low power consumption, making it an excellent choice for a multitude of electronic applications.
