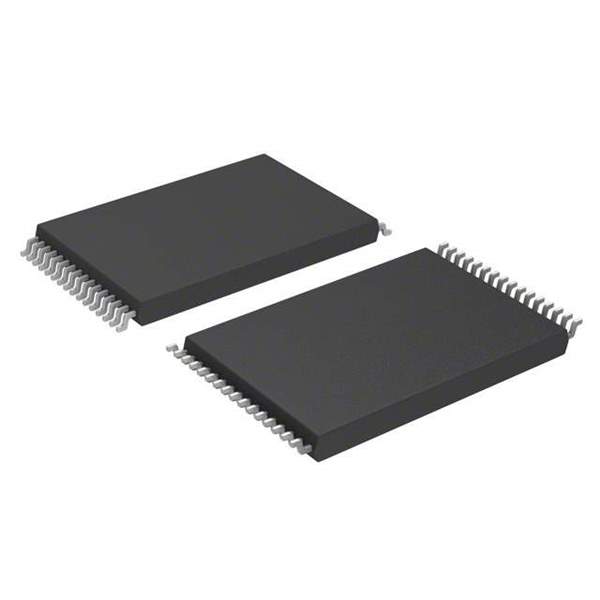

Microchip Technology SST39VF020-70-4I-WHE Flash Memory

The SST39VF020-70-4I-WHE is a high-performance CMOS Multi-Purpose Flash (MPF) memory chip from Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This flash memory device provides a storage solution for a wide range of applications that require reliable and durable non-volatile memory.

With a memory size of 2 Mbit (256K x 8), the SST39VF020-70-4I-WHE offers ample space for firmware storage, boot code, and data logging. It operates with a supply voltage range of 4.5V to 5.5V, making it compatible with a variety of microcontroller and digital systems. The device boasts a fast read access time of 70 ns, which ensures quick data retrieval and contributes to the overall system performance.

One of the key features of this flash memory is its endurance. It is designed to support at least 100,000 erase and program cycles per sector, with a data retention of over 100 years. This level of reliability is crucial for applications where data integrity and longevity are paramount.

The SST39VF020-70-4I-WHE is organized into uniform 4 Kbyte sectors for flexible data management and supports sector-erase and block-erase operations, allowing for efficient memory usage and easier firmware updates. Additionally, the device is designed for simple integration into a system with its industry-standard 32-pin PLCC (Plastic Leaded Chip Carrier) package, which also offers robust physical protection.

For design flexibility, this flash memory chip supports both in-system programming (ISP) and in-application programming (IAP), enabling updates and changes to firmware without the need for specialized equipment. The device also features low power consumption with automatic sleep and power-down modes, which is ideal for battery-powered and energy-conscious applications.

In summary, the SST39VF020-70-4I-WHE from Microchip Technology is a versatile and reliable flash memory solution that is well-suited for a variety of applications that demand high endurance, fast access times, and long data retention. Its ease of integration and programming flexibility make it an excellent choice for designers looking to incorporate robust non-volatile memory into their systems.
