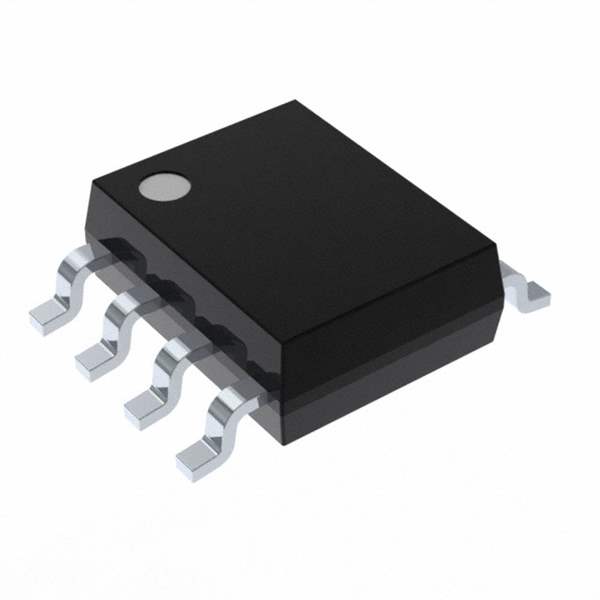

Microchip Technology's TC4421ESM MOSFET Driver

The TC4421ESM is a robust, high-speed power MOSFET driver fabricated by Microchip Technology, designed to accommodate a wide range of power control and switching applications. This driver is capable of delivering a peak output current of 9A, making it suitable for driving large capacitive loads with exceptional speed and efficiency.

Key Features:

• High Peak Output Current: With a 9A peak output, this driver can effectively handle high-current applications.
• Wide Operating Range: The TC4421ESM operates over a supply range of 4.5V to 18V, accommodating various power levels for different uses.
• High-Speed Operation: It features fast rise and fall times of 30ns and 20ns respectively, making it ideal for high-frequency switching applications.
• Input Logic Compatibility: The input is compatible with standard TTL and CMOS levels (down to 2.4V logic) to easily interface with a variety of control circuits.
• Latch-Up Protection: This driver is immune to latch-up, ensuring reliable operation under adverse conditions.
• Protection Features: It includes over-temperature protection and is designed to withstand voltage transients on the input, enhancing the overall durability and reliability of the device.

Applications:

The TC4421ESM is versatile and can be used in a range of applications, including but not limited to:

• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Motor Control Circuits
• Line Drivers
• Pulse Generators

Quality and Reliability:

Microchip Technology is known for its commitment to quality, and the TC4421ESM is no exception. It is built to meet stringent standards, ensuring high performance and dependability for critical industrial, automotive, and consumer applications.

Overall, the TC4421ESM MOSFET driver from Microchip Technology stands out as an excellent choice for designers looking for a reliable and high-performing solution to drive their power MOSFETs and IGBTs.
