Microchip Technology USB2514-HZH: A High-Performance USB 2.0 Hub Controller

The USB2514-HZH from Microchip Technology is a versatile and highly integrated USB 2.0 hub controller, designed to enable the next generation of high-speed USB connectivity. This device is part of Microchip's portfolio of USB 2.0 hub controllers that cater to the ever-increasing demand for multiple USB ports in modern electronic systems. The USB2514-HZH is an ideal solution for a wide range of applications, including desktop and mobile PCs, docking stations, monitors, and many other consumer electronics.

Key Features and Benefits

• Multi-TT Architecture: The USB2514-HZH supports multiple Transaction Translators (Multi-TT), one for each downstream port, providing maximized bandwidth for devices connected to the hub.
• PortMap and PortSwap: These features provide flexible port configuration and allow for efficient PCB routing, reducing design complexity and cost.
• PHYBoost and VariSense: PHYBoost technology enhances signal integrity over challenging cable and connector scenarios, while VariSense allows for improved device detection on longer cables, ensuring robust operation.
• Configurability: The device is highly configurable via GPIO, SMBus, or an external EEPROM, making it adaptable to specific system requirements.
• Energy Efficiency: The USB2514-HZH supports both individual and ganged power switching and over-current detection, contributing to power savings and enhanced power management.

Technical Specifications

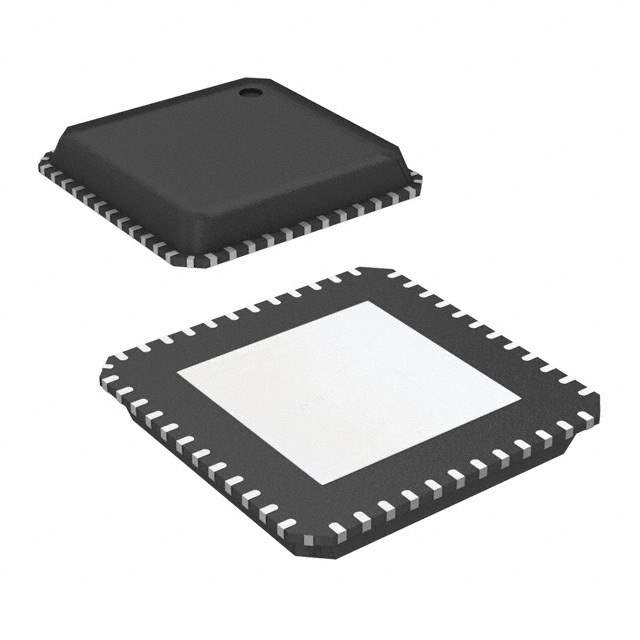

The USB2514-HZH operates at USB 2.0 high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps). It integrates one upstream port and four downstream ports, each capable of handling high-speed data traffic independently. The controller is compliant with USB 2.0 and offers backward compatibility with USB 1.1 legacy devices. The hub controller is available in a 36-pin QFN package, optimized for small form factor designs.

Applications

The flexibility and high performance of the USB2514-HZH make it suitable for a broad range of applications. It is an excellent choice for expanding USB capabilities in consumer electronics, mobile and embedded systems, computing platforms, and gaming consoles. Its robust design ensures reliable connectivity and communication between multiple USB devices, enhancing user experience and system functionality.
