Same model may have multiple batches, images only for reference.

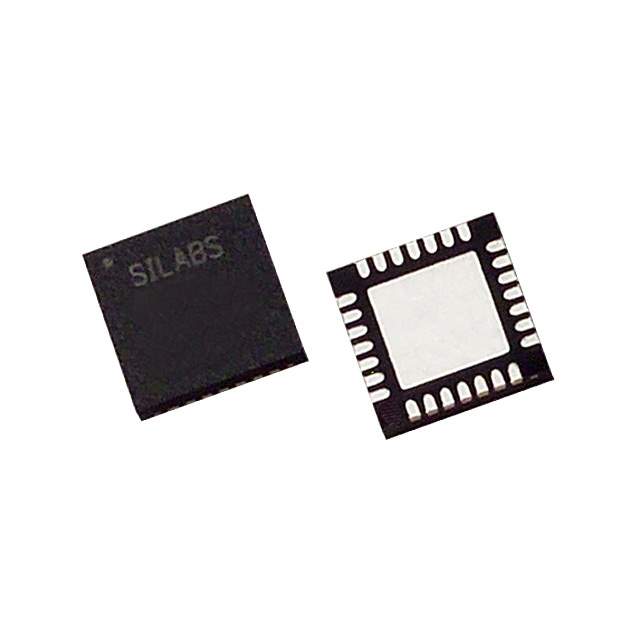

CP2109-A01-GM Real Image
Same model may have multiple batches, images only for reference.

CP2109-A01-GM

Part No CP2109-A01-GM
Manufacturer Silicon Labs
Catalog Interface - Controllers
Description IC BRIDGE USB TO UART QFN / Low Speed/Full Speed USB to UART Bridge USB 2.0 3.3V Tube 28-Pin QFN EP
Datasheet
CP2109-A01-GM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Silicon Labs
Packaging Tube
Protocol USB
Function Bridge, USB to UART
Interface UART
Standards USB 2.0
Operating Supply Voltage 3.3 V ~ 3.6 V
Operating Supply Current 17mA
Operating Temperature Range -40°C ~ 85°C
Package 28-VFQFN Exposed Pad
Manufacturer Package 28-QFN (5x5)
Win Source Part Number 771718-CP2109-A01-GM
Popularity Medium
Supply and Demand Status Limited
Family Name CP2109-A01-GM
Introduction Date November 20, 1997
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian CP2109-A01-GM CAD Model

Description

The CP2109-A01-GM from Silicon Labs is a USB to UART bridge, operating at an operating supply voltage of 3.3 V ~ 3.6 V and an operating supply current of 17mA.

  • Package: 28-VFQFN Exposed Pad
  • Standard: USB 2.0
  • Estimated EOL date: 2020
