Microchip Technology USB3300-EZK-TR USB 2.0 Transceiver

The USB3300-EZK-TR is a high-quality USB 2.0 Hi-Speed transceiver chip developed by Microchip Technology. This versatile and powerful IC is a critical component for a wide range of applications that require USB connectivity, including but not limited to, mobile phones, digital cameras, printers, scanners, and desktop computers.

This transceiver is designed to support all USB 2.0 data rates (High-Speed 480 Mbps, Full-Speed 12 Mbps, and Low-Speed 1.5 Mbps) and is compliant with the USB 2.0 Transceiver Macrocell Interface (UTMI) specification. The USB3300-EZK-TR is also compatible with the ULPI interface, which allows for a reduced pin count and ease of integration into system designs.

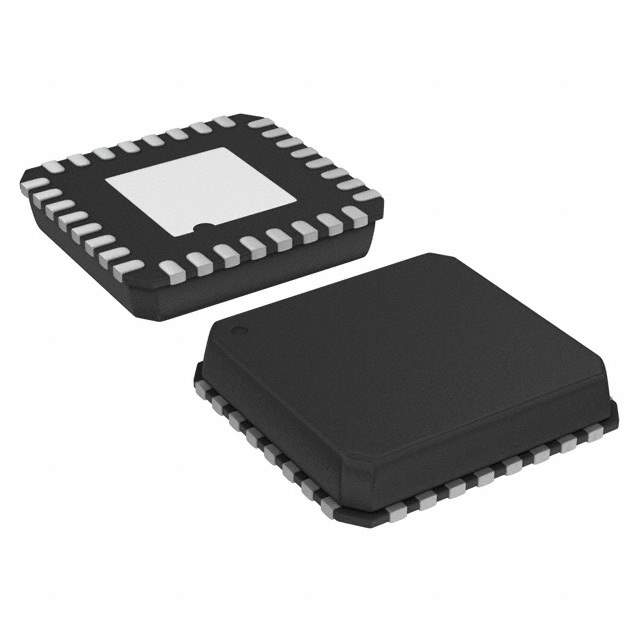

The device comes in a compact 32-QFN (5x5 mm) package, making it an ideal solution for space-constrained applications. Its small footprint does not compromise its performance or reliability, as it is built to maintain high signal integrity and robust operation in various environments.

Key features of the USB3300-EZK-TR include:

• Support for USB 2.0 Hi-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) operation
• Compliance with the UTMI+ Level 3 specification and ULPI specification
• Integrated 3.3V to 1.8V regulator, reducing the need for external components
• Support for external HS USB voltage of 3.3V
• Low-power consumption, making it suitable for battery-powered devices
• High electrostatic discharge (ESD) protection, ensuring device longevity and reliability

With its built-in features and compliance with industry standards, the USB3300-EZK-TR is an excellent choice for designers looking to incorporate USB functionality into their products with minimal design effort. Whether for new designs or upgrading existing products to include USB 2.0 connectivity, the USB3300-EZK-TR by Microchip Technology provides a dependable and straightforward solution.

Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions, offers a range of products that are known for their quality, performance, and ease of use. The USB3300-EZK-TR is no exception and represents their commitment to delivering advanced solutions for a connected world.
