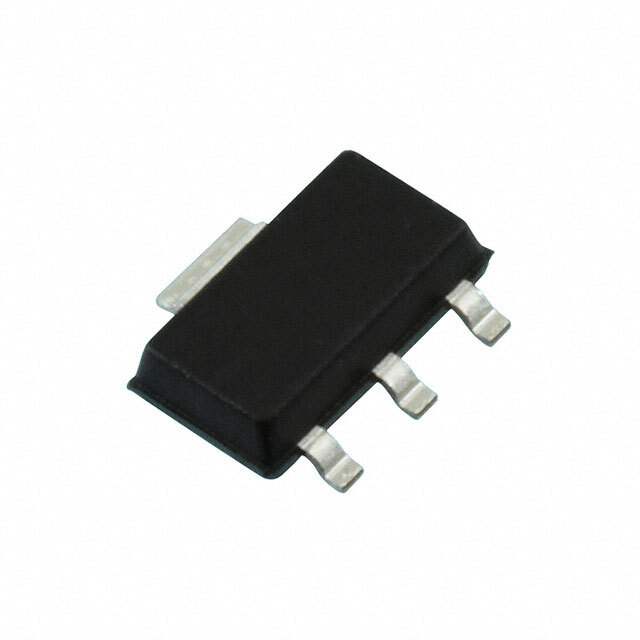

HAL503SF-A Real Image
Same model may have multiple batches, images only for reference.

HAL503SF-A

Part No HAL503SF-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH SOT89B-1 / Digital Switch Latch Open Drain Hall Effect SOT-89B-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Switches (Solid State)
Mfr Micronas GmbH
Series HAL® 5xy
Package Tape & Reel
Product Status Obsolete
Function Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 10mT Trip, -10mT Release
Test Condition 25°C
Voltage - Supply 3.8V ~ 24V
Current - Supply (Max) 4.2mA
Current - Output (Max) 20mA
Output Type Open Drain
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 170°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-89B-1
Package / Case TO-243AA, Variant
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 919991-HAL503SF-A
Ultra Librarian 3D Model Ultra Librarian HAL503SF-A CAD Model

Description

The 919991-HAL503SF-A is a solid-state magnetic sensor from Micronas GmbH.

  • Series: HAL 5xy
  • Feature: temperature compensation
  • Package: tape and reel
  • Standard Package Quantity: 2,000 pieces
  • Technology: hall effect
  • Output Type: open drain
  • Function: latch
  • Test Condition: 25°C
  • Polarized: south pole
  • Maximum Supply Current: 4.2mA
  • Maximum Output Current: 20mA
  • Sensing Range (Trip): 10mT
  • Sensing Range (Release): -10mT
  • Voltage Supply: 3.8V to 24V
  • Mounting: surface mountable
  • Package Variant: TO-243AA
  • Temperature Range: -40°C to 170°C
  • ECCN: EAR99
  • MSL Level: 1
  • HTSUS: 8542.39.0001
  • Product Status: obsolete
