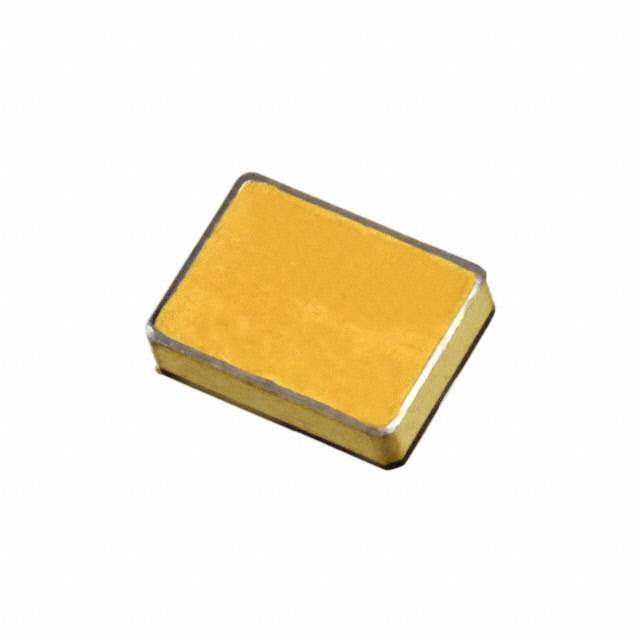

JANS2N5339U3 Real Image
Same model may have multiple batches, images only for reference.

JANS2N5339U3

Part No JANS2N5339U3
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description TRANS NPN 100V 5A SMD5
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Transistor Polarity NPN
Maximum Current Collector 5A
VCEO Maximum Collector-Emitter Breakdown Voltage 100V
Max Vce (sat) 1.2V @ 500mA, 5A
Collector Cut-off Current(Max) 100μA
Typical Gain (hFE) (Min) 60 @ 2A, 2V
Maximum Power Dissipation 1W
Temperature Range - Operating -65°C to 200°C (TJ)
Mounting SMD (SMT)
Case / Package SMD5
Win Source Part Number 140159-JANS2N5339U3
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian JANS2N5339U3 CAD Model

Description

The JANS2N5339U3 is a discrete semiconductor product manufactured by Microsemi Corporation.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Type: NPN transistor
  • Maximum Collector-Emitter Breakdown Voltage: 100V
  • Maximum Collector Current: 5A
  • Applications: Power supplies, inverters, and motor control
  • Package: Small SMD5 package
