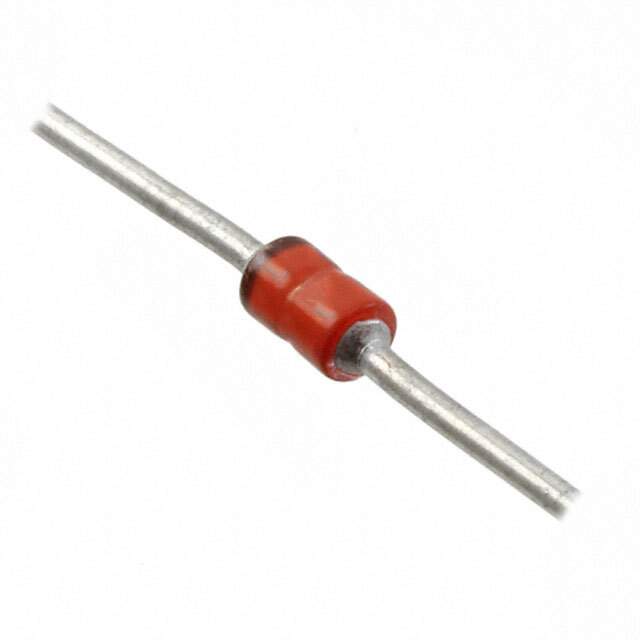

JANTX1N4467 Real Image
Same model may have multiple batches, images only for reference.

JANTX1N4467

Part No JANTX1N4467
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description 1.5 WATT GLASS ZENER DIODES | DIODE ZENER 12V 1.5W DO41
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Supply and Demand Status Limited
Popularity Medium
Manufacturer Homepage www.microsemi.com
Win Source Part Number 1191426-JANTX1N4467
MSL Level 1 (Unlimited)
Manufacturer Pack Quantity 1
Supplier Device Package DO-41
Manufacturer Package DO-204AL, DO-41, Axial
Mounting Style Through Hole
Temperature Range - Operating -65°C ~ 175°C
Voltage - Forward (Vf) (Maximum) at If 1V at 200mA
Current - Reverse Leakage at Vr 200nA at 9.6V
Impedance (Maximum) (Zzt) 7 Ohms
Maximum Power 1.5W
Tolerance ±5%
Voltage - Zener (Nom) (Vz) 12V
Packaging Bulk
Manufacturer Microsemi Corporation
Categories Discrete Semiconductor Products
Ultra Librarian 3D Model Ultra Librarian JANTX1N4467 CAD Model

Description

The JANTX1N4467 is a zener diode from Microsemi Corporation.

  • Zener Voltage: 12V
  • Tolerance: ±5%
  • Package: DO-41
  • Mounting: through-hole
  • Impedance: 7 Ohms
  • Power: 1.5W
  • Voltage Forward: 1V @ 200mA
  • Current Reverse Leakage @ Vr: 200nA @ 9.6V
  • Temperature Range: -65°C to 175°C
  • Category: discrete semiconductor products
  • Supply and Demand Status: limited
  • MSL Level: 1 (unlimited)
  • Power: 1.5W
