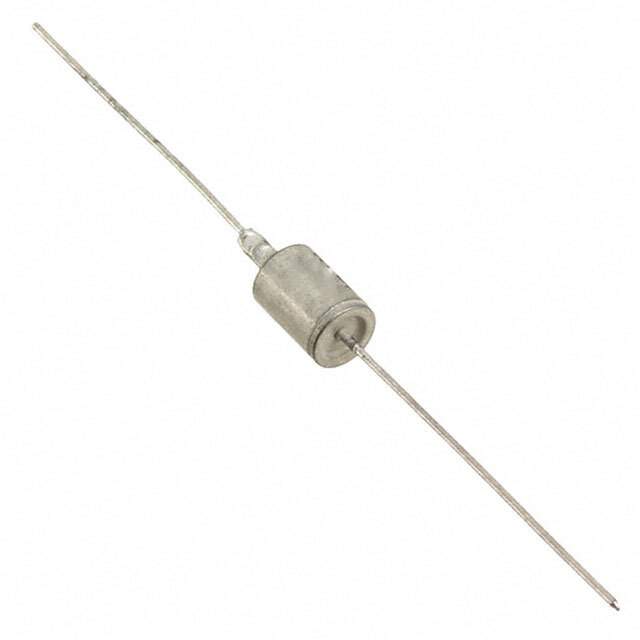

JANTX1N5650A Real Image
Same model may have multiple batches, images only for reference.

JANTX1N5650A

Part No JANTX1N5650A
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description 1500 WATT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 43.6V 70.1V DO13
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Packaging Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 43.6V
Voltage - Breakdown (Minimum) 48.5V
Voltage - Clamping (Maximum) at Ipp 70.1V
Current - Peak Pulse (10/1000μs) 21.4A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-13
Supplier Device Package DO-13 (DO-202AA)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191449-JANTX1N5650A
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N5650A CAD Model

Description

The Microsemi Corporation 1191449-JANTX1N5650A is a DO-13 packaged Zener diode with a reverse standoff voltage of 43.6V and a breakdown voltage (minimum) of 48.5V.

  • Package: DO-13
  • Reverse Standoff Voltage: 43.6V
  • Breakdown Voltage (Minimum): 48.5V
  • Clamping Voltage (Maximum) @ Ipp: 70.1V
  • Peak Pulse Power: 1500W (1.5kW)
  • Current Peak Pulse (10/1000μs): 21.4A
  • Operating Temperature: -65°C to 175°C
  • Supply and Demand Status: Limited
