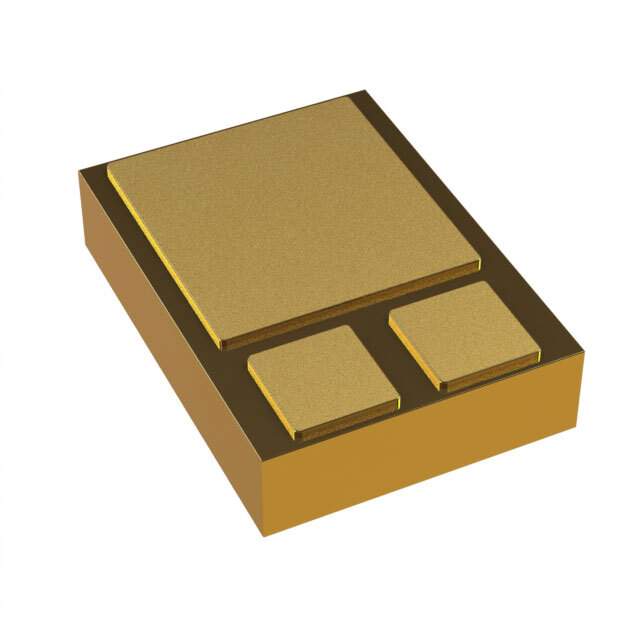

JANTX1N6843CCU3 Real Image
Same model may have multiple batches, images only for reference.

JANTX1N6843CCU3

Part No JANTX1N6843CCU3
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY RECTIFIER HIGH EFFICIENCY SERIES | DIODE SCHOTTKY 100V 15A SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Maximum) at If 1.27V at 30A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 10μA at 100V
Capacitance at Vr, F 275pF at 5V, 1MHz
Mounting Style SMD
Manufacturer Package 3-SMD, Flat Leads
Supplier Device Package SMD
Operating Temperature - Junction -65°C ~ 150°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191476-JANTX1N6843CCU3
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N6843CCU3 CAD Model

Description

The Schottky diode is a high-performance diode manufactured by Microsemi Corporation suitable for use in a variety of applications.

  • Maximum Reverse Voltage: 100V
  • Recovery Speed: 200mA (Io)
  • Current Rating: 15A
  • Operating Temperature: -65°C to 150°C
  • Capacitance: 275pF @ 5V and 1MHz
  • Package: 3-SMD, flat leads package
  • Supply and Demand Status: Limited
