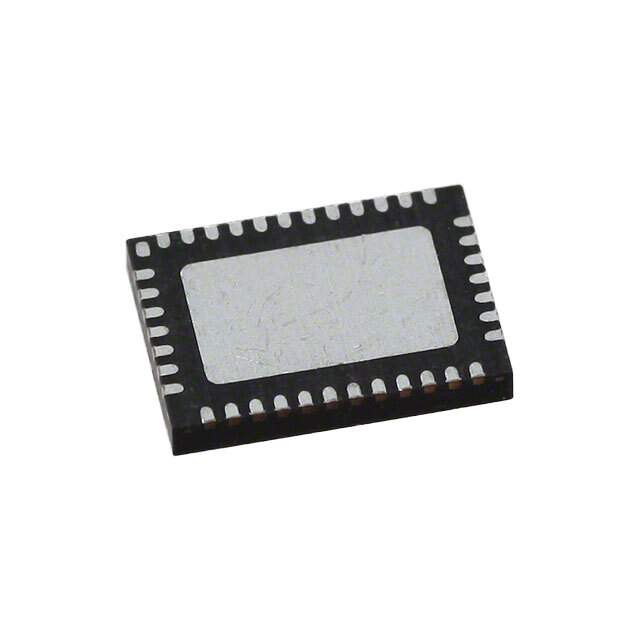

LX2260ILQ-TR Real Image
Same model may have multiple batches, images only for reference.

LX2260ILQ-TR

Part No LX2260ILQ-TR
Manufacturer Microsemi Corporation
Catalog Board Mount LED Drivers
Description LED Driver 9V/12V/15V/18V/24V Automotive 38-Pin QFN EP T/R / IC LED DRIVER CTRLR DIM 38QFN
Datasheet
LX2260ILQ-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Series Automotive, AEC-Q100
Packaging Reel package
Part Status Obsolete(EOL)
Type DC DC Controller
Topology Step-Down (Buck), Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 4
Voltage Supply MIN 6V
Voltage Supply MAX 28V
Output Current per Channel 500mA
Frequency 670kHz
Dimming Analog, PWM
Applications Automotive
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 38-VFQFN Exposed Pad
Manufacturer Package 38-QFN (5x7)
Win Source Part Number 784772-LX2260ILQ-TR
Popularity Medium
Supply and Demand Status Limited
Family Name LX2260
Introduction Date December 13, 2012
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LX2260ILQ-TR CAD Model

Description

The LX2260ILQ-TR from Microsemi Corporation is a DC DC controller designed for automotive applications.

  • Topology: Step-Down (buck), Step-Up (boost)
  • Operating Temperature: -40°C to 85°C (TA)
  • Frequency: 670kHz
  • Outputs: 4
  • Dimming: Analog and PWM
  • Output Current: 500mA per channel
  • Mounting Type: Surface Mount
  • Package: 38-VFQFN Exposed Pad
  • Voltage Supply: 6V to 28V
  • Obsolete: Yes
