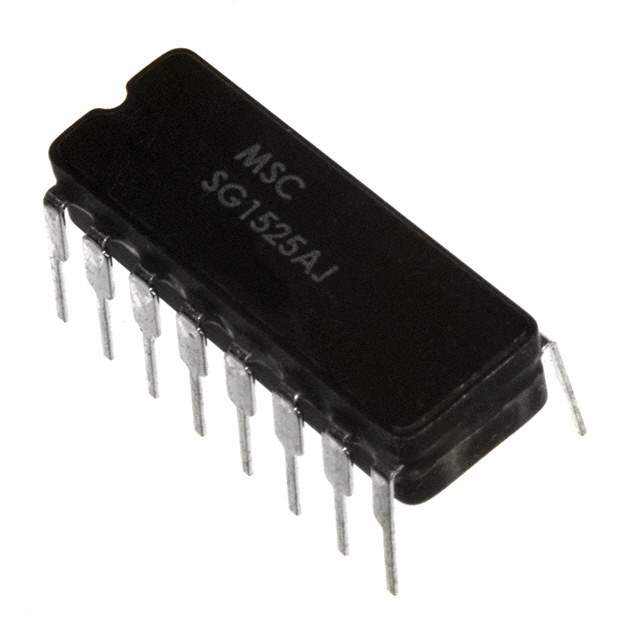

SG1525AJ Real Image
Same model may have multiple batches, images only for reference.

SG1525AJ

Part No SG1525AJ
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR PUSH-PULL 16DIP
Datasheet
SG1525AJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Status Active
Output Type Transistor Driver
Purpose Step-Up/Step-Down
Topology Push-Pull
Number of Outputs 2
Output Phases 1
Supply Voltage - Operating 8 V to 35 V
Frequency - Switching 100Hz to 350kHz
Duty Cycle (Max) 49%
Synchronous Rectifier Yes
Clock Sync Yes
Control Features Enable, Frequency Control, Soft Start
Temperature Range - Operating -55°C to 125°C (TA)
Case / Package 16-CERDIP
Win Source Part Number 1095467-SG1525AJ
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian SG1525AJ CAD Model

Description

The supply and demand status of this product is limited.

  • Purpose: Step-up/Step-down
  • Frequency Switching: 100Hz to 350kHz
  • Duty Cycle: Up to 49%
  • Outputs: Two
  • Rectifiers: Synchronous
  • Package: 16-CERDIP
