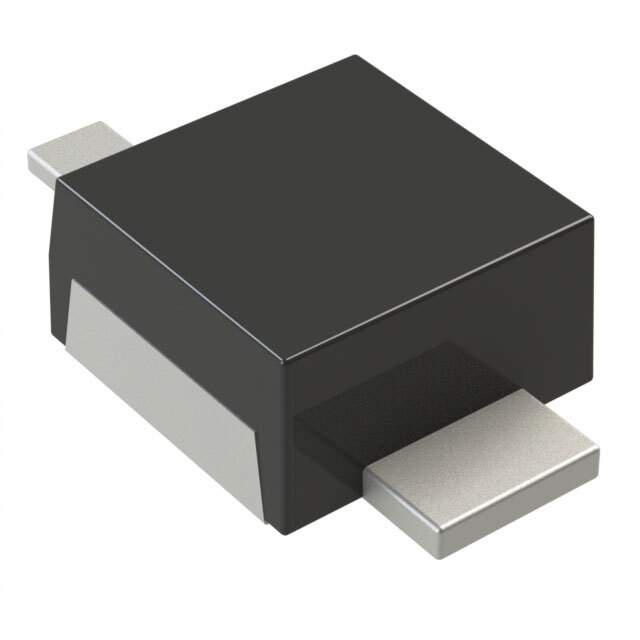

UPS120E3/TR7 Real Image
Same model may have multiple batches, images only for reference.

UPS120E3/TR7

Part No UPS120E3/TR7
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A POWERMITE1
Datasheet
UPS120E3/TR7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 400μA @ 20V
Mounting SMD (SMT)
Case / Package Powermite 1 (DO216-AA)
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 036130-UPS120E3/TR7
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian UPS120E3/TR7 CAD Model

Description

The Microsemi Corporation 036130-UPS120E3/TR7 is a Schottky diode that is ideal for use in power management applications.

  • GPTDescription: With a maximum reverse voltage of 20V and an average rectified current of 1A, this diode is perfect for use in a variety of applications.
  • GPTDescription: The voltage forward @ maximum forward current is 450mV, while the current reverse leakage @ maximum reverse voltage is 400μA.
  • GPTDescription: This diode is packaged in a Powermite 1 (DO216-AA) case and is mounted using SMD (SMT) technology.
  • GPTDescription: The operating temperature range for this diode is -55°C to 125°C, making it suitable for use in harsh environments.
  • GPTDescription: This product is part of the Discrete Semiconductor Products category and is currently active.
  • GPTDescription: The package contains 3k pcs.
