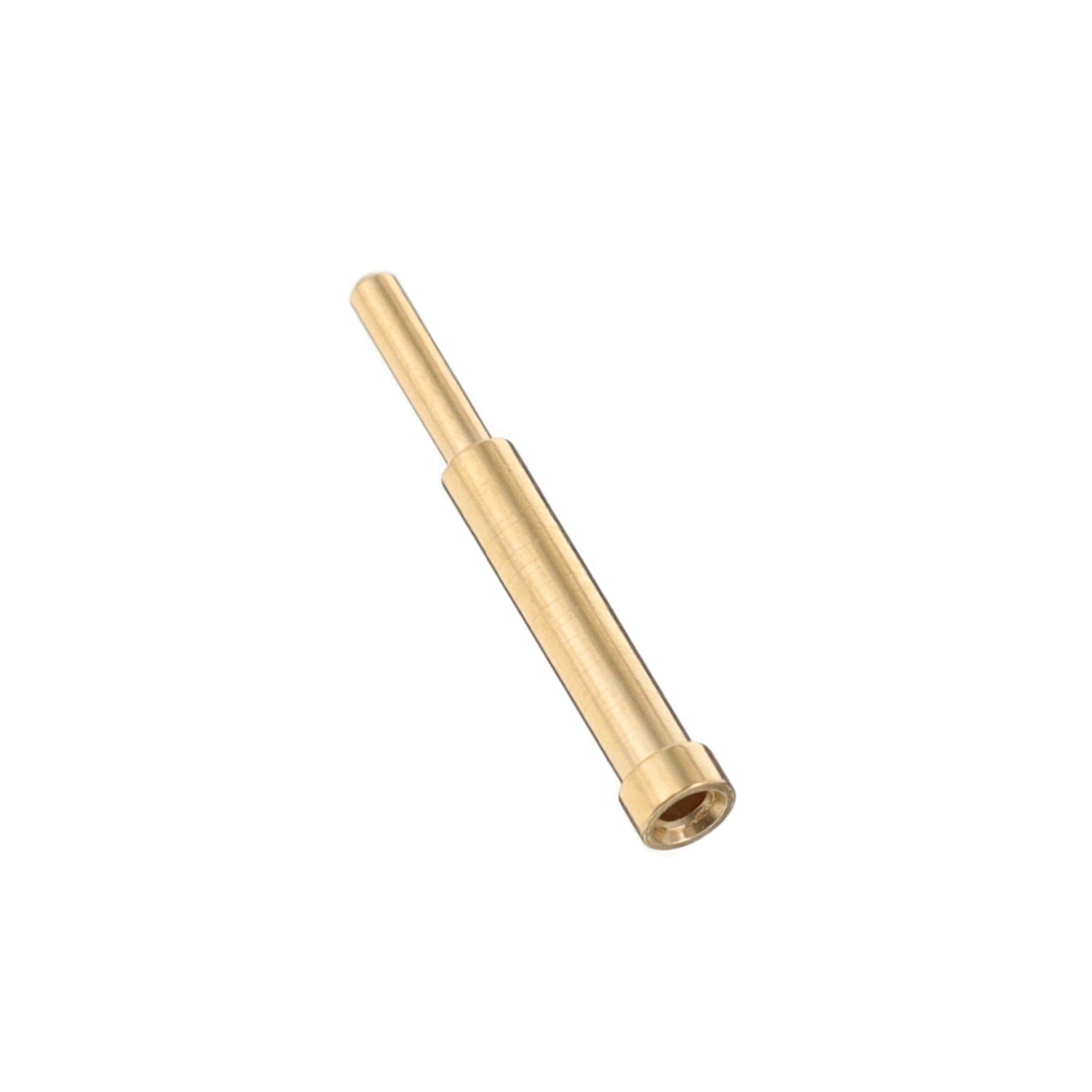

0326-2-19-15-06-27-10-0

Part No 0326-2-19-15-06-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin Receptacles, Socket Connectors
Description CONN PIN RCPT .022-.032 SWAGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Tail Type No Tail
Termination Swage
Length - Overall 0.294" (7.47mm)
Accepts Pin Diameter 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Pin Hole Diameter 0.051" (1.30mm)
Mounting Hole Diameter 0.060" (1.52mm)
Flange Diameter 0.094" (2.39mm)
Socket Depth 0.170" (4.32mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1629258-0326-2-19-15-06-27-10-0
Ultra Librarian 3D Model Ultra Librarian 0326-2-19-15-06-27-10-0 CAD Model
