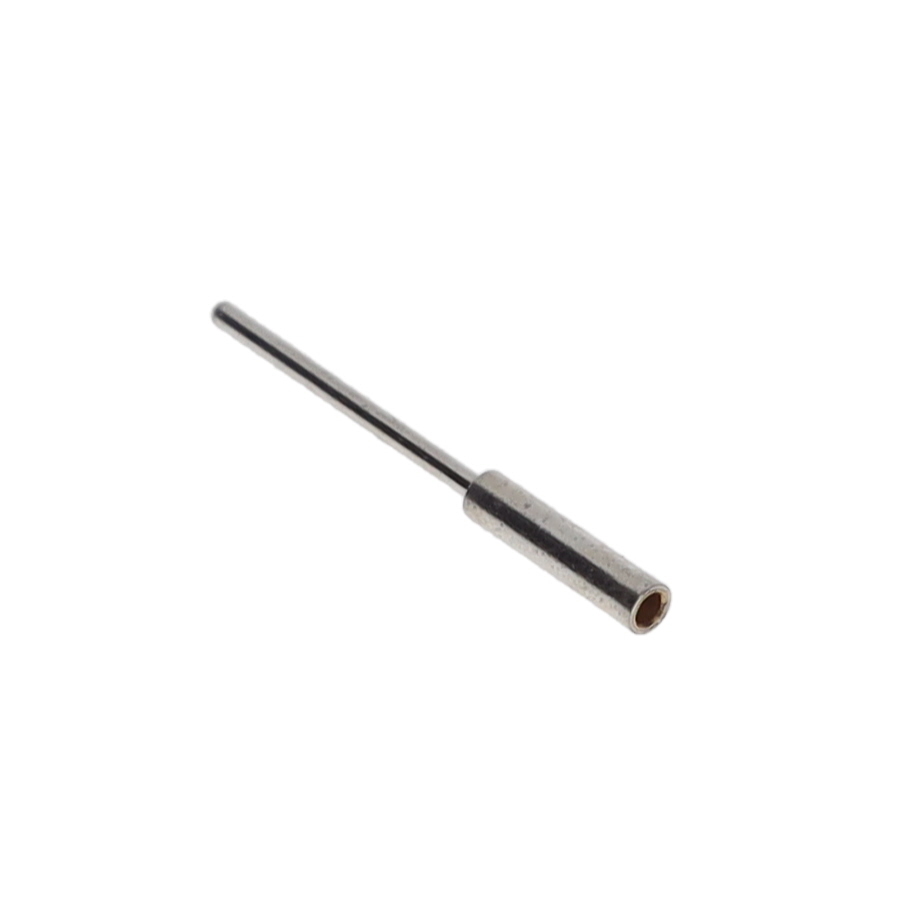

0520-0-00-21-00-00-03-0

Part No 0520-0-00-21-00-00-03-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin, Single Post Connectors
Description CONN PC PIN CIRC 0.080DIA GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type PC Pin
Terminal Style Wire
Pin Size - Above Flange 0.080" (2.03mm) Dia
Pin Size - Below Flange 0.100" (2.54mm) Dia
Length - Above Flange 0.460" (11.68mm)
Length - Below Flange 0.250" (6.35mm)
Length - Overall 0.740" (18.80mm)
Flange Diameter 0.125" (3.18mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Non-Insulated
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1629238-0520-0-00-21-00-00-03-0
Ultra Librarian 3D Model Ultra Librarian 0520-0-00-21-00-00-03-0 CAD Model
