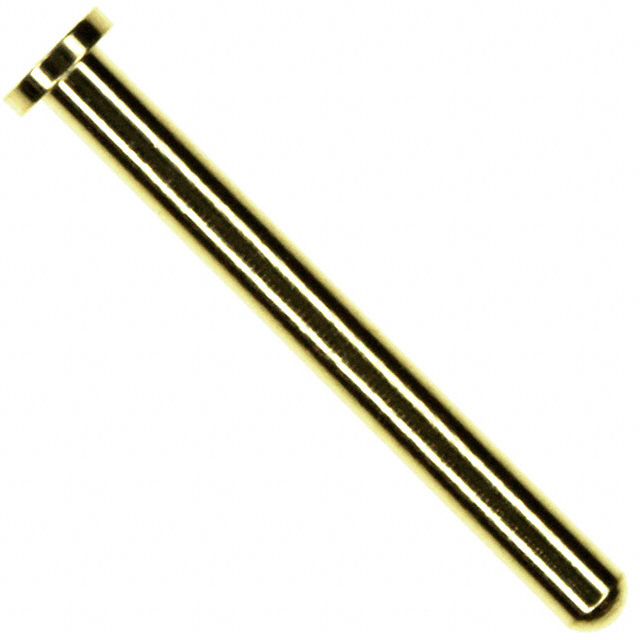

Same model may have multiple batches, images only for reference.

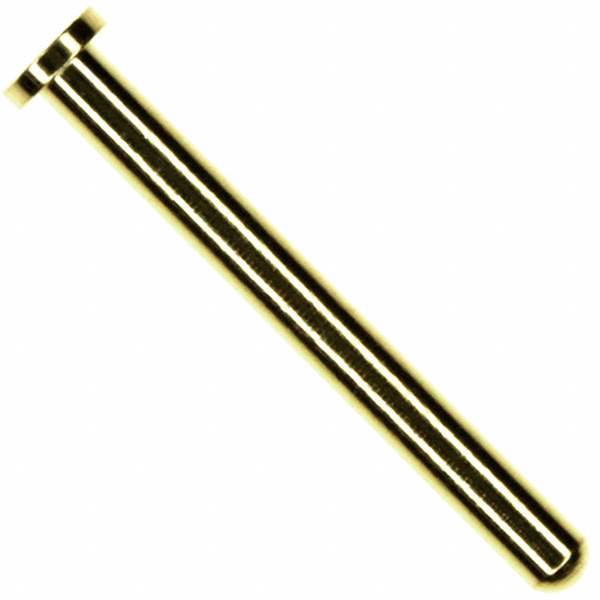

6142-0-00-15-00-00-33-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

6142-0-00-15-00-00-33-0

Part No 6142-0-00-15-00-00-33-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin, Single Post Connectors
Description CONN PC PIN CIRC 0.060DIA GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsTerminalsPC Pin, Single Post Connectors
Manufacturer Mill-Max Manufacturing Corp.
Series 6142
Packaging Bulk
Part Status Active
Terminal Type PC Pin
Terminal Style Single End, Nail Head
Pin Size - Above Flange 0.060" (1.52mm) Dia
Length - Above Flange 0.590" (14.99mm)
Length - Overall 0.610" (15.50mm)
Flange Diameter 0.100" (2.54mm)
Mounting Hole Diameter 0.064" (1.63mm)
Mounting Type Through Hole
Termination Solder
Insulation Non-Insulated
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 10.0μin (0.25μm)
Base Product Number 6142-0
Ultra Librarian 3D Model Ultra Librarian 6142-0-00-15-00-00-33-0 CAD Model
