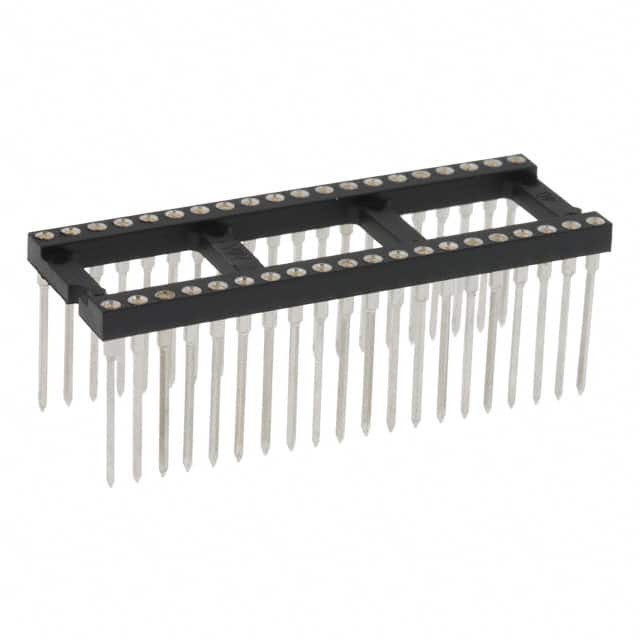

123-43-640-41-001000 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

123-43-640-41-001000

Part No 123-43-640-41-001000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Sockets for ICs, Transistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Mill-Max Manufacturing Corp.
Series 123
Package Tube
Type DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 40 (2 x 20)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Wire Wrap
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 200.0µin (5.08µm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.510" (12.95mm)
Current Rating (Amps) 3 A
Base Product Number 123-43
Other Names 1.23436E+15,1234364041001000,ED90178
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285215-123-43-640-41-001000
Ultra Librarian 3D Model Ultra Librarian 123-43-640-41-001000 CAD Model

Description

The 123-43-640-41-001000 is a 40-pin DIP socket for ICs and transistors from Mill-Max Manufacturing Corp.

  • Manufacturer: Mill-Max Manufacturing Corp.
  • Pins: 40
  • Type: DIP Socket
  • Pitch: 0.100 inches
  • Row Spacing: 0.6 inches
  • Frame: Open
  • Termination: Wire Wrap
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Post Material: Brass Alloy
  • Post Finish: Tin
  • Standard Package: 10
  • Mounting: Through-Hole
