Same model may have multiple batches, images only for reference.

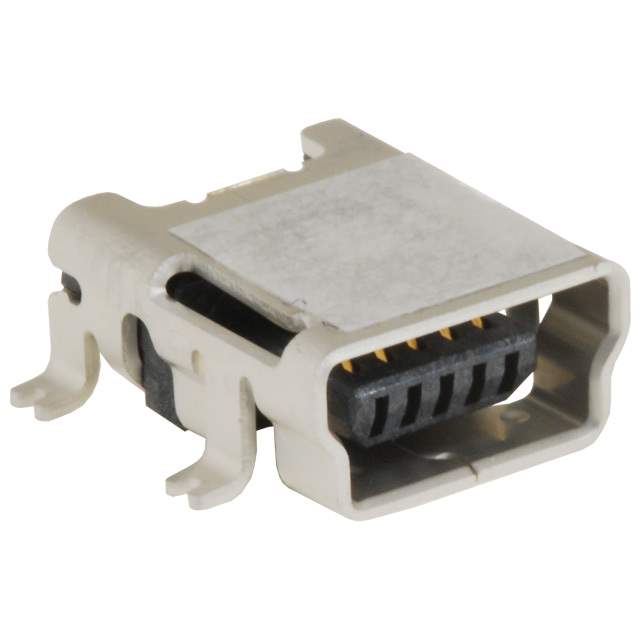

UX60-MB-5ST Real Image
Same model may have multiple batches, images only for reference.

UX60-MB-5ST

Part No UX60-MB-5ST
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series UX
Package Tape & Reel
Product Status Obsolete
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -30°C ~ 75°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 5VAC
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 240-0001-9-00,Q4552665,UX60MB5ST,*UX60-MB-5ST,H2959CT,H2959TR,H2959DKR
Standard Package 1,000
Win Source Part Number 1016549-UX60-MB-5ST
Ultra Librarian 3D Model Ultra Librarian UX60-MB-5ST CAD Model

Description

The Hirose Electric Co Ltd USB mini B connector is a high-quality product designed for use in USB, DVI, and HDMI connectors.

  • Termination: Solder
  • Contact Finish: Gold
  • Mounting: Horizontal
  • Mating Cycle: 5000
  • Current Rating: 1A
  • Insulation Color: Black
  • Material Flammability Rating: UL94 V-0
