214-99-318-01-670800 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

214-99-318-01-670800

Part No 214-99-318-01-670800
Manufacturer Mill-Max Manufacturing Corp.
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 18POS TINLEAD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 18 (2 x 9)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Material - Mating Beryllium Copper
Mounting Type Surface Mount
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin-Lead
Contact Finish Thickness - Post 200.0µin (5.08µm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C ~ 125°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1629162-214-99-318-01-670800
Ultra Librarian 3D Model Ultra Librarian 214-99-318-01-670800 CAD Model

Description

N

You May Also Be Interested in

251-5949-02-0602 3M – Price, Stock & Datasheet
251-5949-02-0602
3M
CONN ZIG-ZAG ZIF 51POS GOLD
Need more? Email Us
Picture of 251-5949-01-0602
251-5949-01-0602
3M
CONN ZIG-ZAG ZIF 51POS GOLD
Need more? Email Us
220-7201-55-1902 3M – Price, Stock & Datasheet
220-7201-55-1902
3M
CONN SOCKET SOIC 20POS GOLD
Need more? Email Us
PLCC-32-AT-SMT Adam Technologies, Inc. – Price, Stock & Datasheet
PLCC-32-AT-SMT
Adam Technologies, Inc.
PLCC SOCKET 32P SMT
Lowest to $1.4553

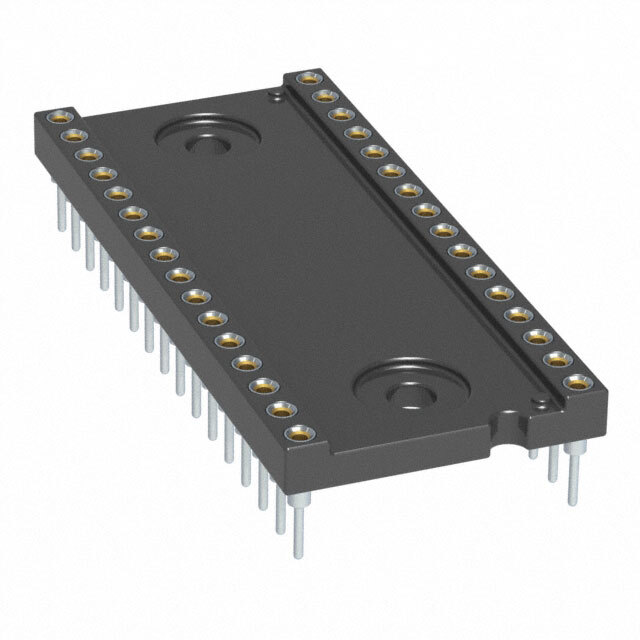

Picture of 210-33-628-41-101000
