310-13-105-41-001000 Mill-Max Manufacturing Corp.

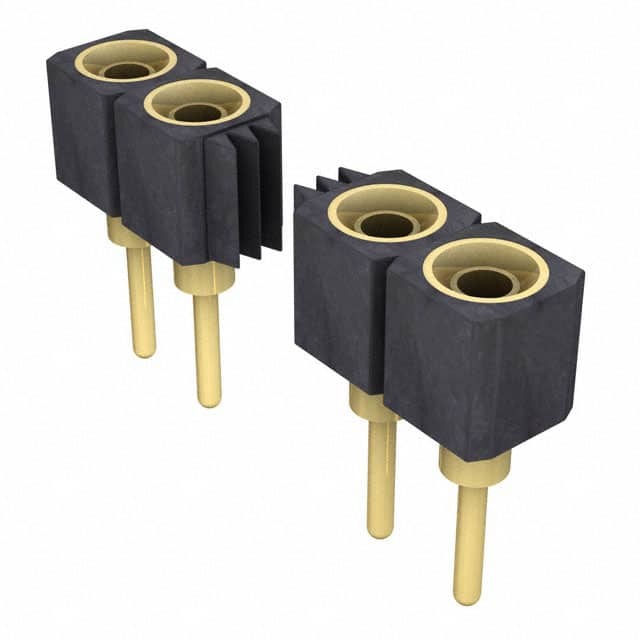

Same model may have multiple batches, images only for reference.

310-13-105-41-001000

Part No 310-13-105-41-001000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN RCPT 5POS 0.1 GOLD PCB  /  5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
310-13-105-41-001000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Mill-Max Manufacturing Corp.
Series 310
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 5
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.110" (2.79mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 3A
Voltage Rating 100V, 150VDC
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 10.0µin (0.25µm)
Base Product Number 310-13
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names ED7405-ND,ED7405,3101310541001000,ED7464-05
Standard Package 1
Win Source Part Number 1143122-310-13-105-41-001000
Ultra Librarian 3D Model Ultra Librarian 310-13-105-41-001000 CAD Model

Description

The Mill-Max Manufacturing Corp. 310-13-105-41-001000 is a 5-position female socket connector.

  • Series: 310
  • Packaging: Tube
  • Pitch: 0.100" (2.54mm)
  • Style: Board-to-Board
  • Material: Beryllium Copper
  • Voltage Rating: 100V, 150VDC
  • Termination: Soldering
  • Fastening Type: Push-Pull
  • Standard Package: 1
  • Current Rating: 3A
  • Operating Temperature Range: -55°C to 125°C
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
