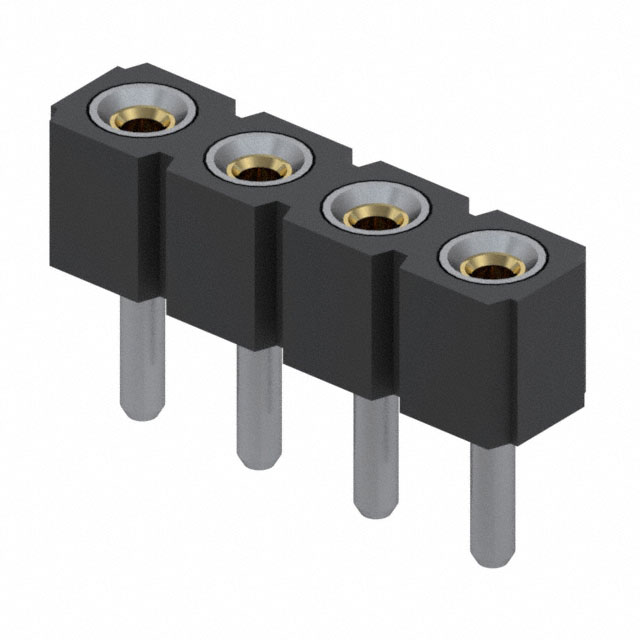

Same model may have multiple batches, images only for reference.

315-43-104-41-001000

Name: 315-43-104-41-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 447081
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	315-43-104-41-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN SOCKET STRIP 4PIN LO PRO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Bulk
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	100μin (2.54μm)
Insulation Color	Black
Insulation Height	0.110" (2.79mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	100V, 150VDC
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	1032222-315-43-104-41-001000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1
Ultra Librarian 3D Model	Ultra Librarian 315-43-104-41-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 1032222-315-43-104-41-001000 is a 4-position through-hole receptacle connector with a push-pull fastening type.

Pitch: 2.54mm
Series: 315
Contact Gender: Female
Contact Material: Beryllium Copper
Contact Finish Mating: Gold
Contact Finish Post: Tin
Voltage Rating: 100V and 150VDC
Current Rating: 3A
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
Material Flammability Rating: UL94 V-0
Application: Board-to-Board
Operating Temperature Range: -55°C to 125°C
Fastening Type: Push-Pull
