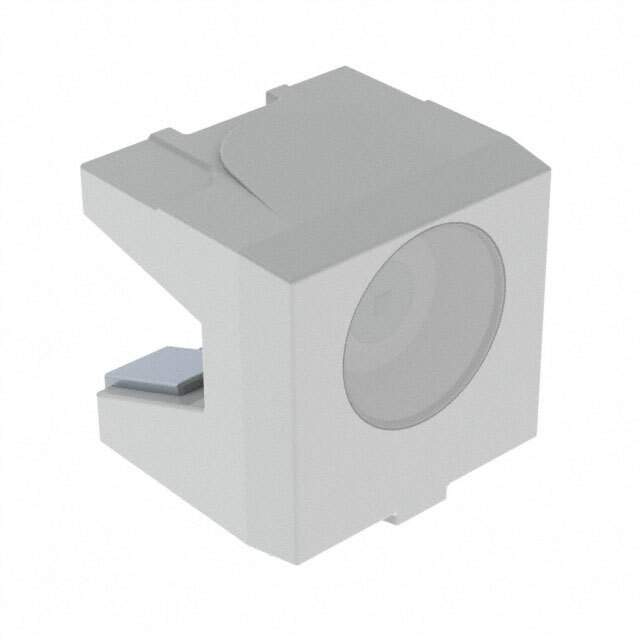

Q65111A0513 Real Image
Same model may have multiple batches, images only for reference.

Q65111A0513

Part No Q65111A0513
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Amber 624nm Automotive 2-Pin SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Orange
Depth 3.8 mm
Dominant Wavelength 617 nm
Forward Current 50 mA
Forward Voltage 2.4 V
Length 4.2 mm
Lens Style Circular, Colorless, Diffused
Luminous Flux 7.56 lm
Luminous Intensity 2.8 cd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Schedule B 8541402000
Test Current 30 mA
Viewing Angle 120 °
Win Source Part Number 959286-Q65111A0513
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian Q65111A0513 CAD Model

Description

The OSRAM Opto Semiconductors Inc. LED component with Win Source Part Number 959286-Q65111A0513 is a surface mount device with SMD/SMT termination.

  • Termination: SMD/SMT
  • Lens Style: Circular, Colorless, Diffused
  • Element: Single
  • Forward Voltage: 2.4V
  • Forward Current: 50mA
  • Luminous Intensity: 2.8cd
  • Luminous Flux: 7.56lm
  • Viewing Angle: 120 degrees
  • Reverse Voltage: 12V
  • Maximum Operating Temperature: 100 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Supply and Demand Status: Shortage
