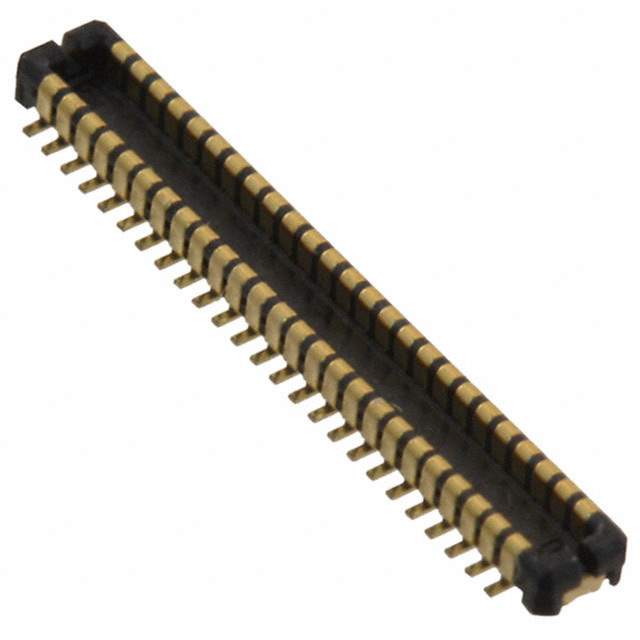

DF37B-50DP-0.4V(51)

Part No DF37B-50DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 50POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1032972-DF37B-50DP-0.4V(51)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian DF37B-50DP-0.4V(51) CAD Model

Description

DF37B-50DP-0.4V(51) from Hirose Electric Co Ltd is a fine-pitch rectangular connector designed for compact board-to-board interconnect applications where space, profile, and connection reliability matter. With 50 positions, 0.40 mm pitch, dual rows, SMT mounting, and a low above-board height, it fits dense consumer, industrial, portable, and embedded electronic designs that require stable signal routing in limited PCB space. Features such as gold contact finish and solder retention support dependable assembly and mating performance in high-volume manufacturing. Based on the provided status, the part is active, which is a positive sign for ongoing design use, although the broader lifecycle field is listed as unknown and should still be verified through the manufacturer or latest channel data. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance should be treated as information not available pending confirmation from Hirose documentation or authorized distribution sources.
