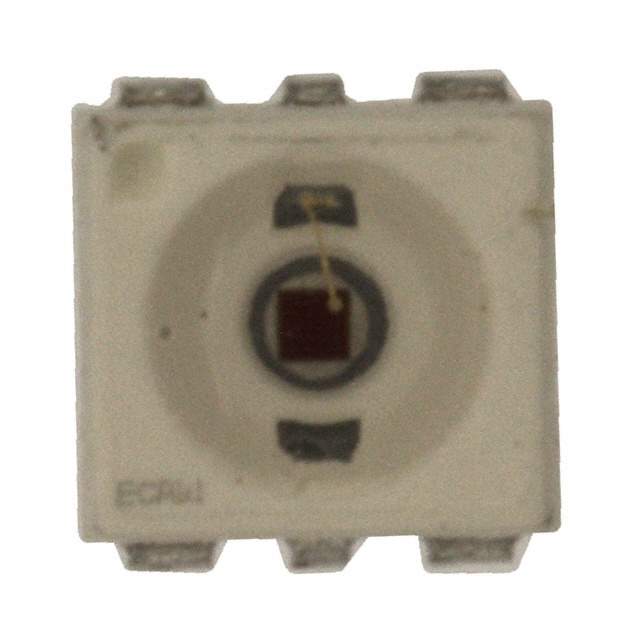

Same model may have multiple batches, images only for reference.

LY G6SP-CADB-36-1-Z

Name: LY G6SP-CADB-36-1-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 959700
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LY G6SP-CADB-36-1-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Description	LED TOPLED YLW 589NM 6PLCC / LED Lighting Color series Yellow 589nm (583nm ~ 595nm) 6-SMD, J-Lead
Datasheet	LY G6SP-CADB-36-1-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	ams-OSRAM USA Inc.
Series	Advanced Power TOPLED®
Package	Tape & Reel
Color	Yellow
Wavelength	589nm (583nm ~ 595nm)
Current - Test	140mA
Voltage - Forward (Vf) (Typ)	2.25V
Lumens/Watt @ Current - Test	44 lm/W
Current - Max	200mA
Luminous Flux @ Current/Temperature	14lm (10lm ~ 19lm)
Temperature - Test	25°C
Viewing Angle	120°
Mounting	SMD (SMT)
Package / Case	6-SMD, J-Lead
Supplier Device Package	6-PLCC
Dimension	0.130" L x 0.118" W (3.30mm x 3.00mm)
Height - Seated (Max)	0.083" (2.10mm)
Thermal Resistance of Package	50°C/W
Base Product Number	LYG6SP
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	LYG6SP-CADB-36-1,LYG6SPCADB361Z,LY G6SP-BBDB-36-1-140-R18-Z-ND,LY G6SP-BBDB-36-1-Z,LYG6SPCADB361,475-2551-2,475-2551-1,Q65110A4721,475-2551-6,LYG6SP-CADB-36-1-Z,LY G6SP-CADB-36-1,LY G6SP-BBDB-36-1-140-R18-Z
Standard Package	1,000
Win Source Part Number	959700-LY G6SP-CADB-36-1-Z
Ultra Librarian 3D Model	Ultra Librarian LY G6SP-CADB-36-1-Z CAD Model

Alternative Products

Description

The OSRAM Opto Semiconductors Inc. LY G6SP-CADB-36-1-Z is a yellow LED with a luminous flux of 14lm @ a current of 140mA and a temperature of 25 degrees Celsius.

Operating Voltage: 2.25V
Current Handling: up to 200mA
Viewing Angle: 120 degrees
Package: 6-SMD, J-Lead package
Suitable for: use in LED lighting
Supply and Demand Status: balance of supply and demand status
