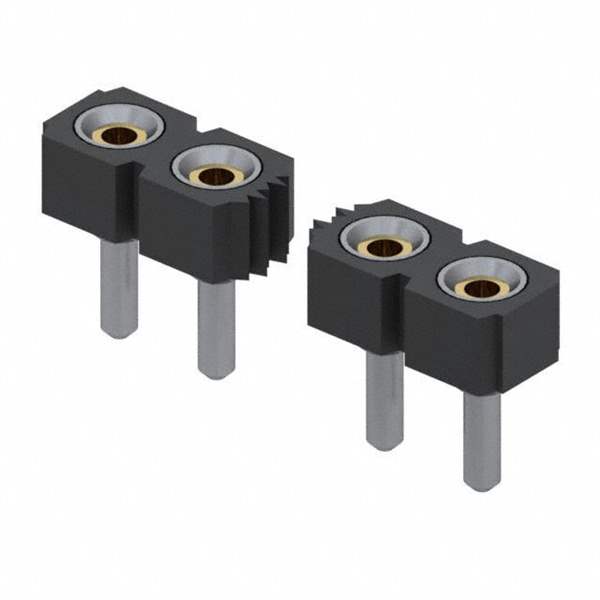

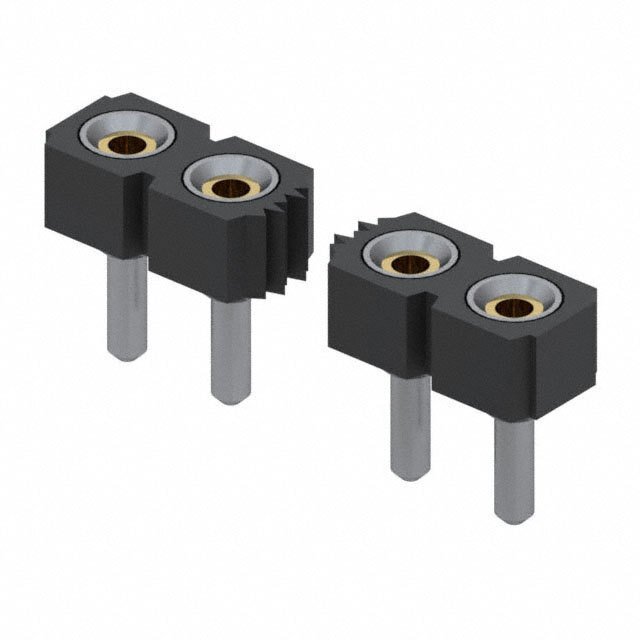

315-93-120-41-003000

Name: 315-93-120-41-003000
Brand: Mill-Max Manufacturing Corp.
SKU: 772328
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	315-93-120-41-003000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN SOCKET 20POS ULTRA LOPRO / Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	315
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.071" (1.80mm)
Contact Length - Post	0.095" (2.41mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	100V, 150VDC
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	772328-315-93-120-41-003000
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	315
Introduction Date	May 07, 2009
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 315-93-120-41-003000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 315 series connector is a board to board style receptacle with 20 positions loaded.

Pitch-Mating: 0.100" (2.54mm)
Mounting: through hole
Contact Material: beryllium copper
Contact Finish-Mating: gold
Contact Finish Thickness-Mating: 30μin (0.76μm)
Contact Finish-Post: tin
Contact Finish Thickness-Post: 200μin (5.08μm)
Current Rating: 3A
Voltage Rating: 100V, 150VDC
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating: UL94 V-0
Insulation Color: black
Insulation Height: 0.071" (1.80mm)
Fastening: push-pull
