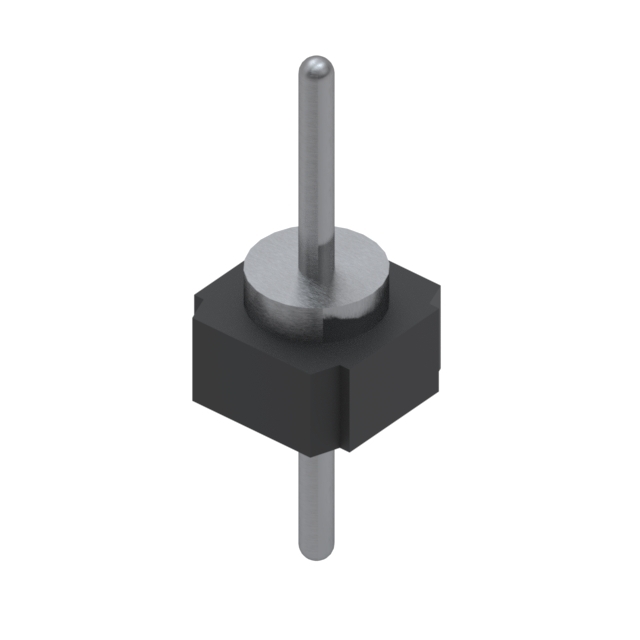

335-40-101-00-160000 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

335-40-101-00-160000

Part No 335-40-101-00-160000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN HEADER SGL 1POS .100" T/H / Conn Unshrouded Header HDR 1 POS Solder ST Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Series 335
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Style Board to Board
Shrouding Unshrouded
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.104" (2.65mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.050" (1.27mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 200μin (5.08μm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color Black
Contact Finish Thickness - Post 200μin (5.08μm)
Win Source Part Number 772341-335-40-101-00-160000
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 335
Introduction Date January 08, 2008
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 335-40-101-00-160000 CAD Model

Description

The Mill-Max Manufacturing Corp. It is limited in terms of supply and demand status.

  • Win Source Part Number: 772341-335-40-101-00-160000
  • Series: 335
  • Packaging: bulk
  • Positions: one
  • Mounting: through hole
  • Connector Type: header
  • Contact Type: male pin
  • Positions Loaded: all
  • Rows: one
  • Termination: solder
  • Fastening Type: push-pull
  • Contact Material: brass alloy
  • Insulation Material: polycyclohexylenedimethylene terephthalate (PCT)
  • Shrouding: unshrouded
  • Contact Shape: circular
  • Introduction Date: January 08, 2008
  • Estimated EOL Date: 2027
