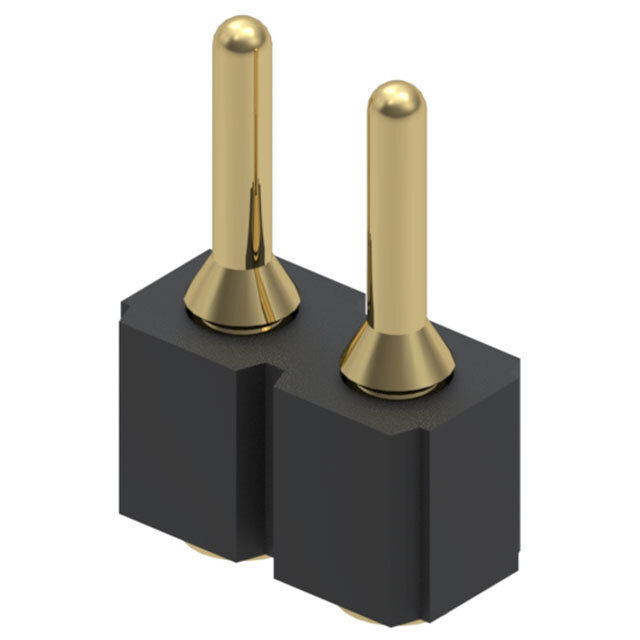

349-10-102-00-560000

Name: 349-10-102-00-560000
Brand: Mill-Max Manufacturing Corp.
SKU: 772302
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	349-10-102-00-560000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN HEADER 2POS SMD SNGL ROW / Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	349
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.135" (3.45mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Gold
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color	Black
Contact Finish Thickness - Post	10μin (0.25μm)
Win Source Part Number	772302-349-10-102-00-560000
Popularity	Medium
Supply and Demand Status	Limited
Family Name	349
Introduction Date	March 04, 2013
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 349-10-102-00-560000 CAD Model

Alternative Products

Description

The Mill-Max 772302-349-10-102-00-560000 is a board-to-board header connector from Mill-Max.

Positions: Two
Pin Type: Male
Shrouding: Unshrouded
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Pitch: 0.100" (2.54mm)
Contact Finish: Gold (10μin / 0.25μm)
Termination: Solder
Fastening Type: Push-Pull
Operating Temperature: -40°C to 85°C
Contact Length: 0.135" (3.45mm)
