4034-0-15-80-23-27-04-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

4034-0-15-80-23-27-04-0

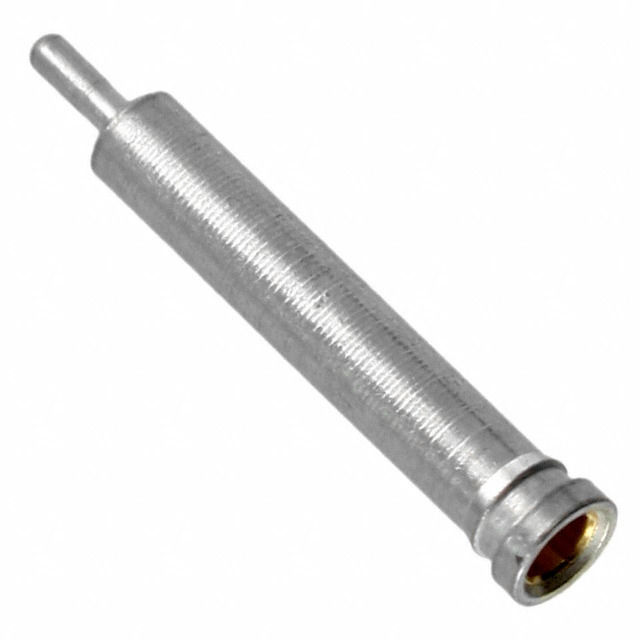

Part No 4034-0-15-80-23-27-04-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .045-.065 PRESSFIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Tail Type Standard Tail
Termination Press-Fit
Length - Overall 0.725" (18.42mm)
Accepts Pin Diameter 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Pin Hole Diameter 0.088" (2.24mm)
Mounting Hole Diameter 0.109" (2.77mm)
Flange Diameter 0.123" (3.12mm)
Tail Diameter 0.040" (1.02mm)
Socket Depth 0.375" (9.53mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809503-4034-0-15-80-23-27-04-0
Ultra Librarian 3D Model Ultra Librarian 4034-0-15-80-23-27-04-0 CAD Model

Description

The 809503-4034-0-15-80-23-27-04-0 connector from Mill-Max Manufacturing Corp. is a press-fit connector.

  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Beryllium Copper
  • Overall Length: 0.725" (18.42mm)
  • Pin Diameter: 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
  • Mounting Hole Diameter: 0.109" (2.77mm)
  • Tail Diameter: 0.040" (1.02mm)
  • Socket Depth: 0.375" (9.53mm)
  • Supply and Demand Status: Limited
