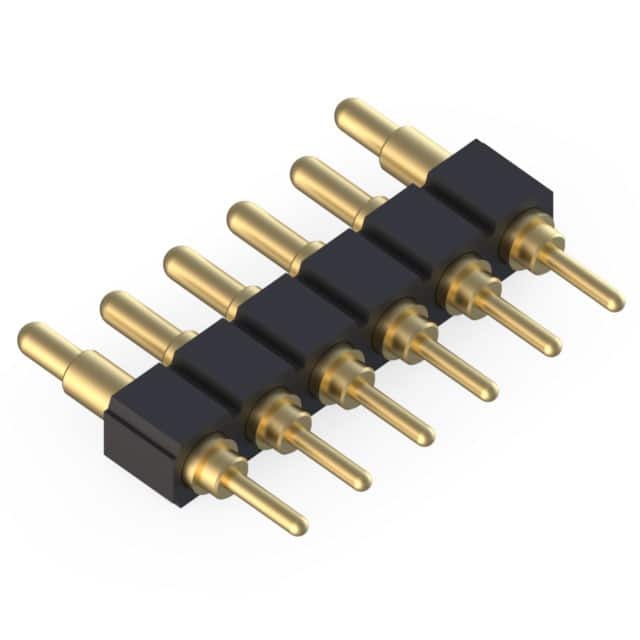

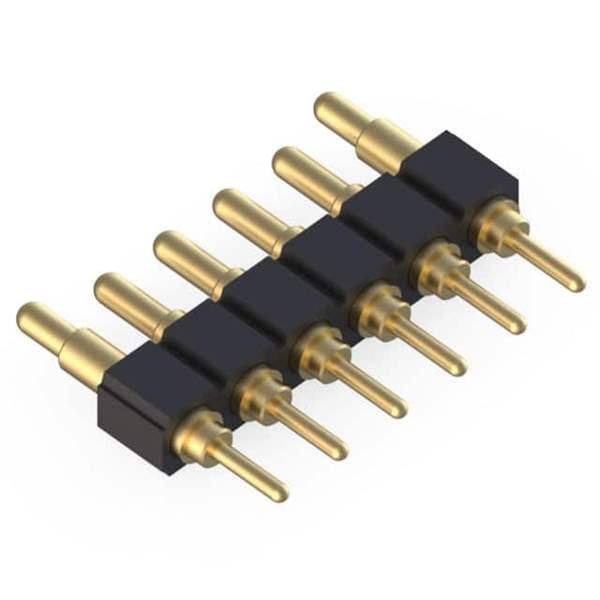

825-22-006-10-020101 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

825-22-006-10-020101

Part No 825-22-006-10-020101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description FMLB SPRING-LOADED CONN, TH SING / 6 Position Spring Piston Connector Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr Mill-Max Manufacturing Corp.
Series 825
Package Tube
Connector Type Piston
Number of Contacts 6
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 825-22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 54-825-22-006-10-020101
Standard Package 34
Win Source Part Number 1035585-825-22-006-10-020101
Ultra Librarian 3D Model Ultra Librarian 825-22-006-10-020101 CAD Model

Description

The Mill-Max Manufacturing Corp. Rectangular Connectors Spring Loaded is a high-quality electronic component that is designed to operate in a wide temperature range of -55°C to 125°C.

  • Series: 825
  • Pitch: 0.100 inch (2.54mm)
  • Connector Type: Piston
  • Rows: 1
  • Contacts: 6
  • Contact Material: Brass Alloy
  • Contact Plating: Gold
  • Packaging: Tube
  • REACH: Unaffected
  • ECCN: EAR99
